Version: 3.0

Flavor

Flavor is a virtual hardware configuration profile that defines the resource allocation required for a virtual machine (VM) or instance, including the number of vCPUs, amount of memory, and root disk size. Flavors are a critical component of the Compute (Nova) service, enabling users to create consistent and manageable templates for compute resources within a cloud platform.

Create Flavor​

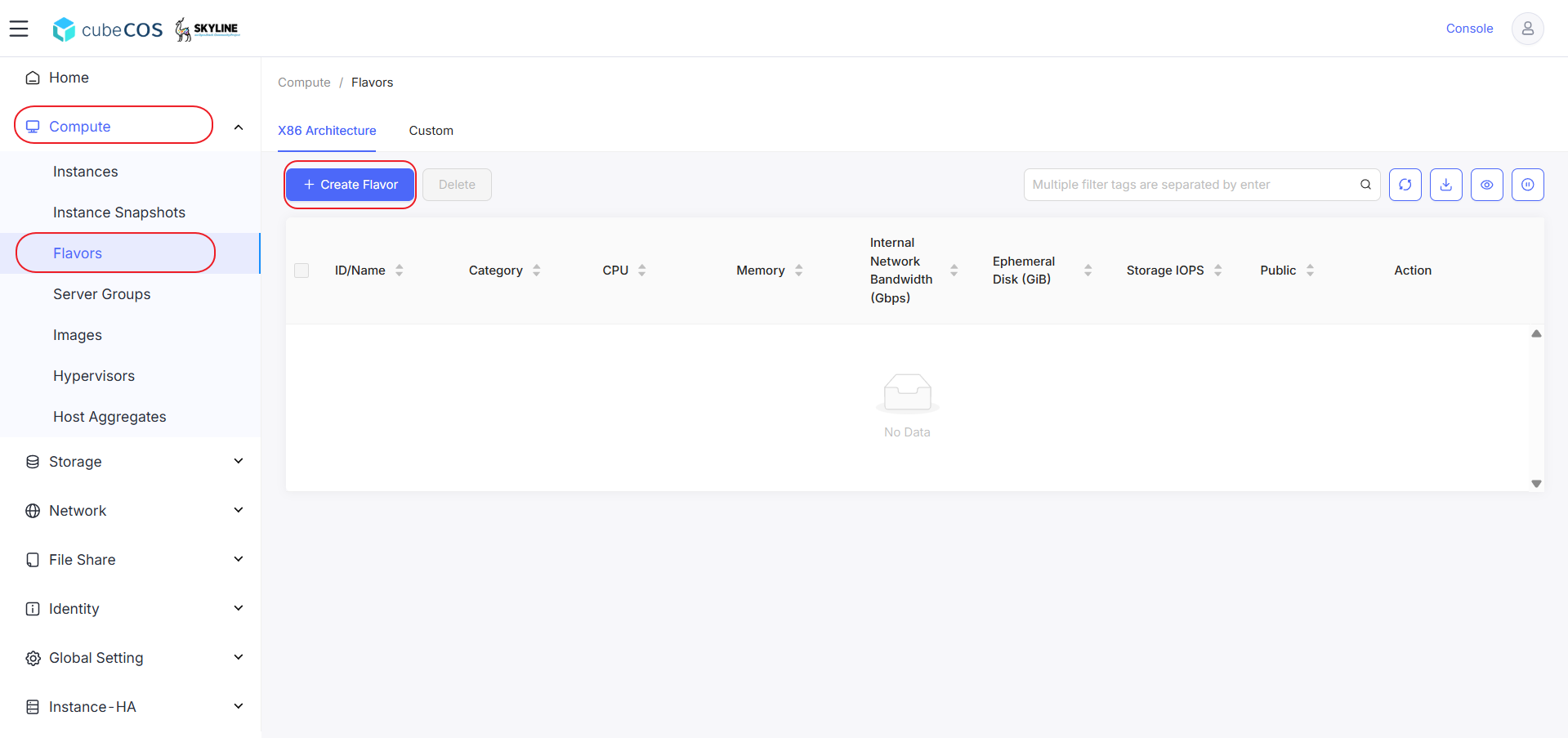

  1. Navigate to Administrator > Compute > Flavors, then select + CREATE FLAVOR.

    /assets/compute/flavors/flavor_1.png

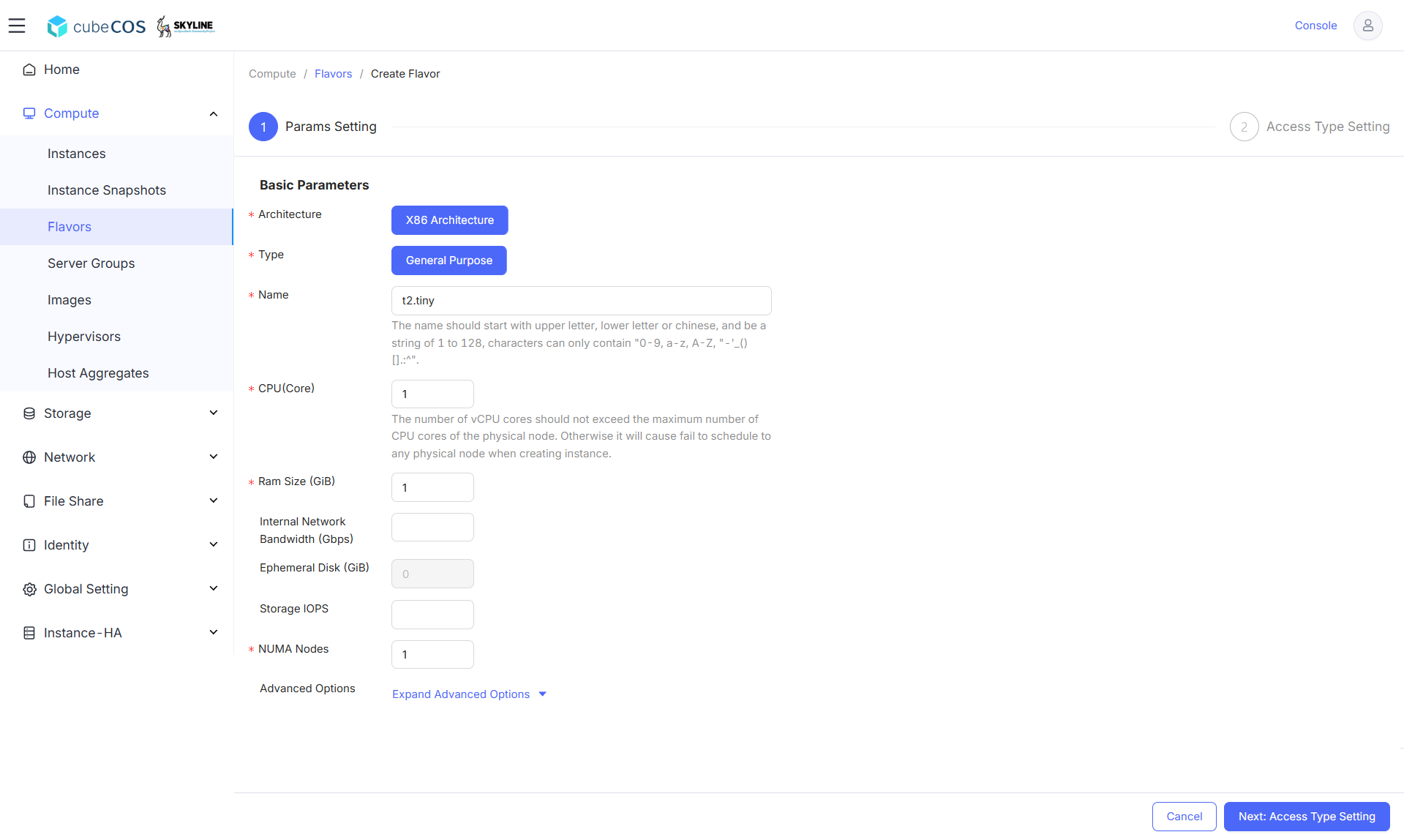

  2. Configure the following options

    • Architecture option is pre-configured for X86 Architecture
    • Select the General Purpose type.
    • Configure a name for your flavor.
    • Assign the number of vCPU cores.
    • Set the Ram size/ memory in GiBs. /assets/compute/flavors/flavor_2.png

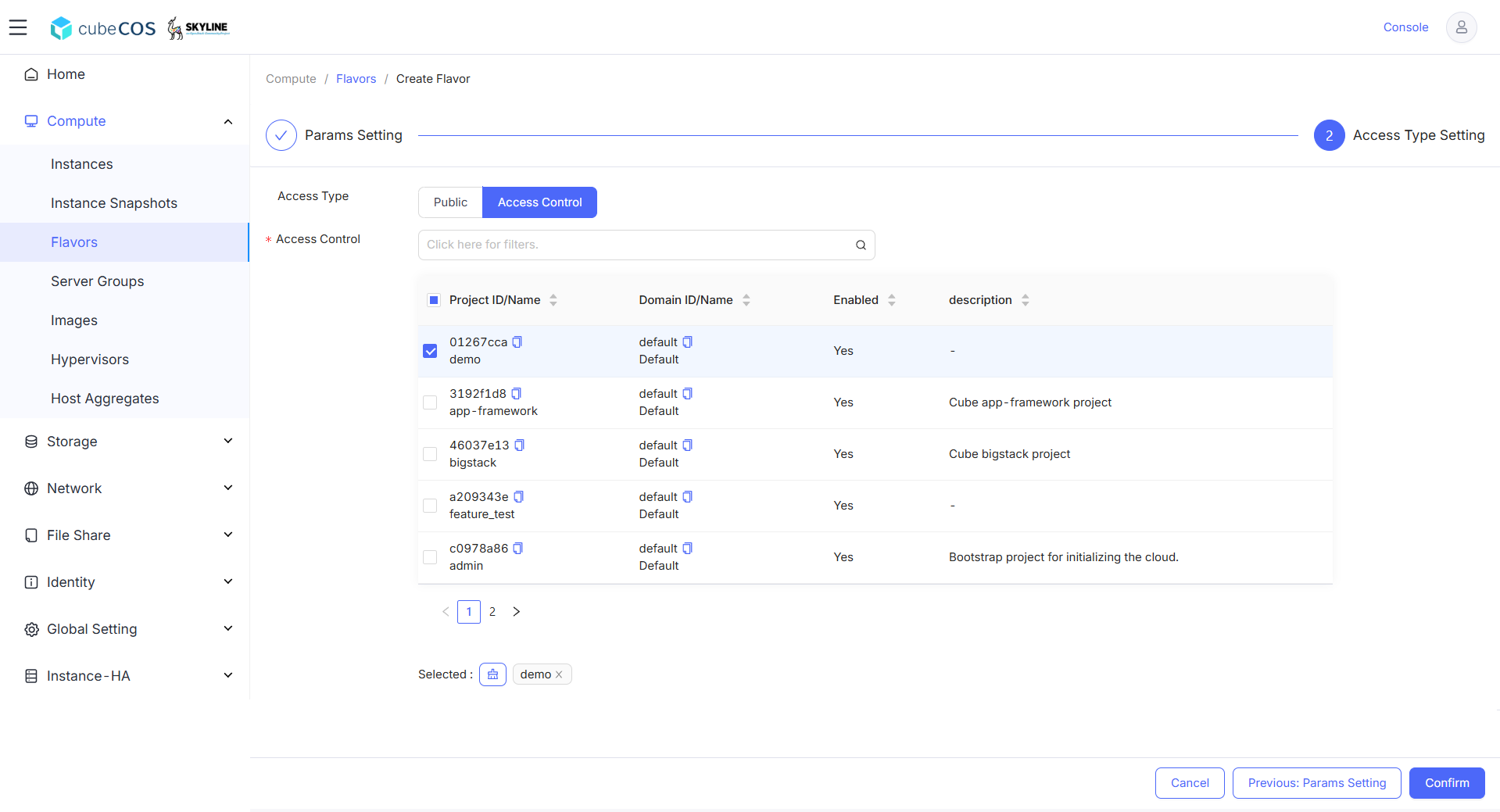

  3. Assign projects to gain access control by selecting before starting flavor create by clicking Confirm. Step can be remodify by clicking Previous : Params Setting button.

    Access Control is used for assgining flavors to specific projects, which set to Public by default.

    /assets/compute/flavors/flavor_3.png

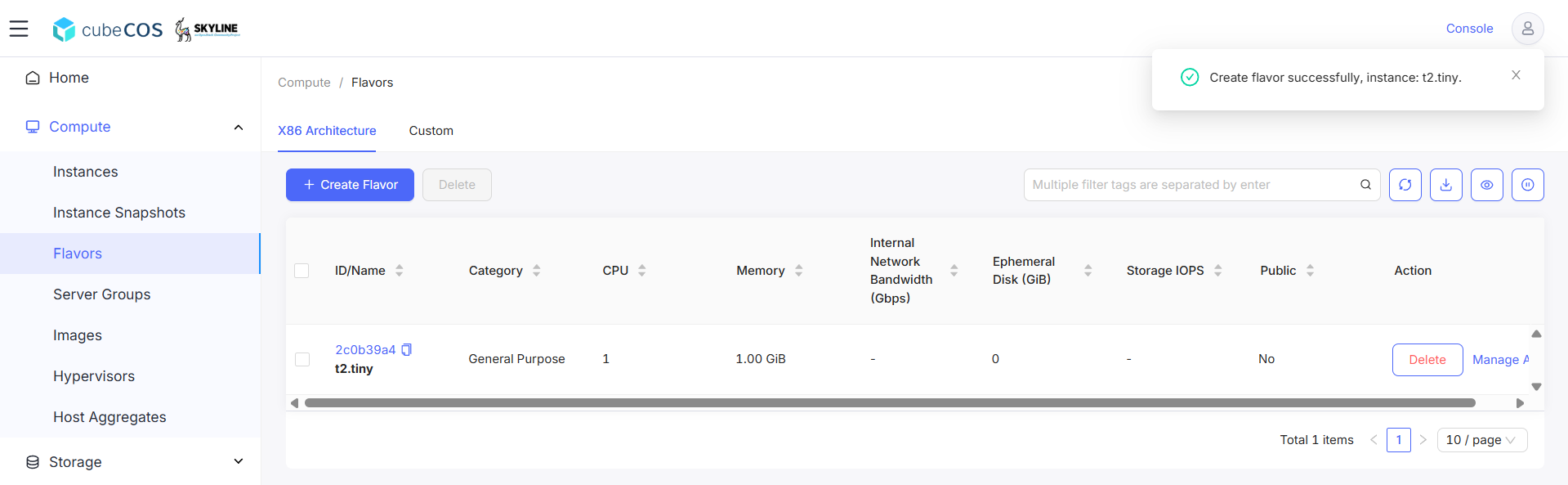

  4. Use the dashboard to verify the Flavor creation.

    /assets/compute/flavors/flavor_4.png

Edit Flavor - metadata​

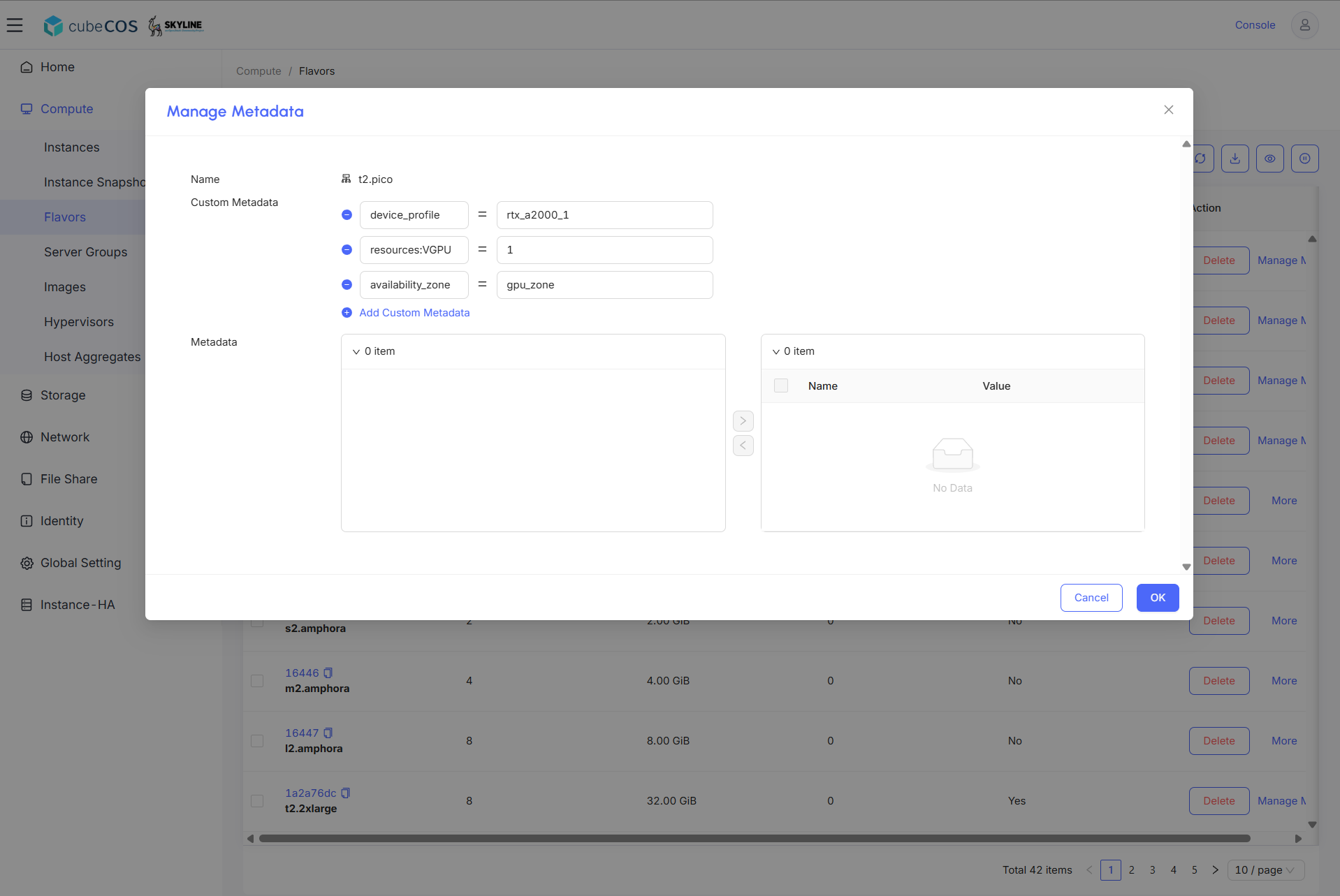

AI accelerator Profile - passthrough​

  • accel:device_profile = "rtx_a2000_1"

AI accelerator Profile - virtual GPU​

  • resources:VGPU = "1"

Host Aggregate Zone - available zone​

  • availability_zone = "gpu_zone"

    /assets/compute/flavors/flavor_5.png

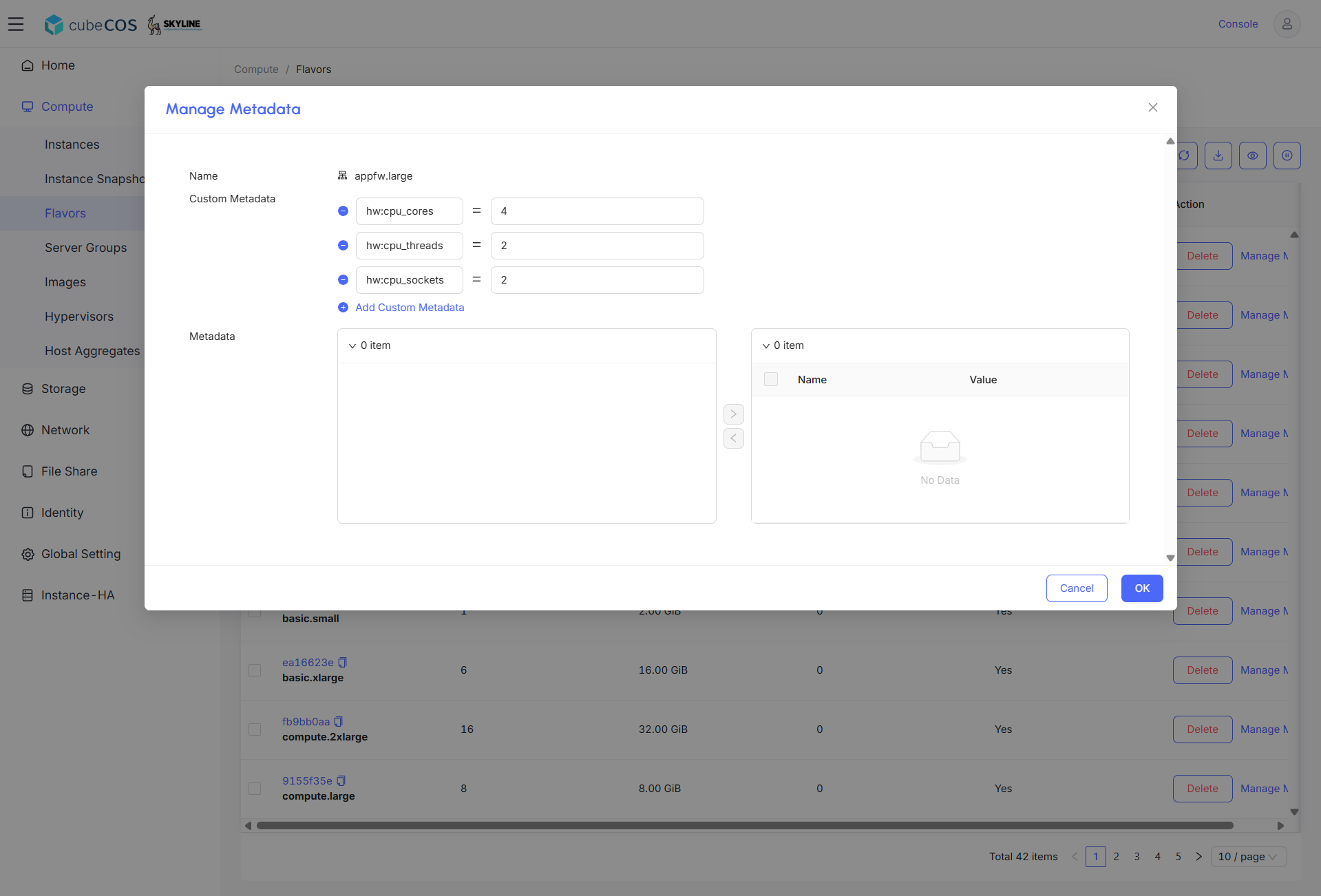

CPU cores, threads, sockets for Windows​

  • hw:cpu_cores = "4"

  • hw:cpu_threads = "2"

  • hw:cpu_sockets = "2"

    /assets/compute/flavors/flavor_6.png
