Repairing CubeCOS services in the UI and CLI

Sometime CubeCOS services will happen error, then this status will shown on the CubeCOS Web UI or you can use the CLI to check CubeCOS services.

UI repair function

1. Check Health Status: Review the system’s health indicators displayed in the interface.

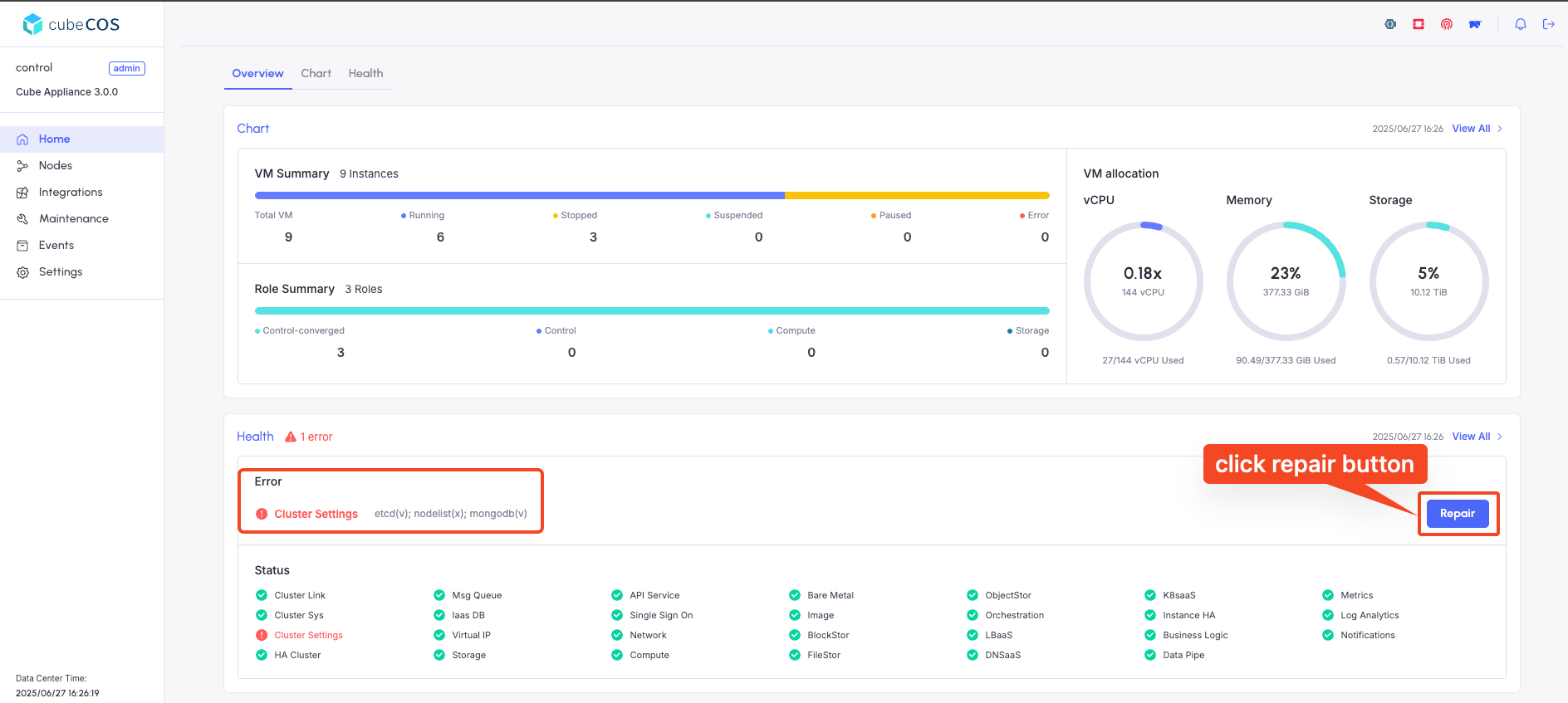

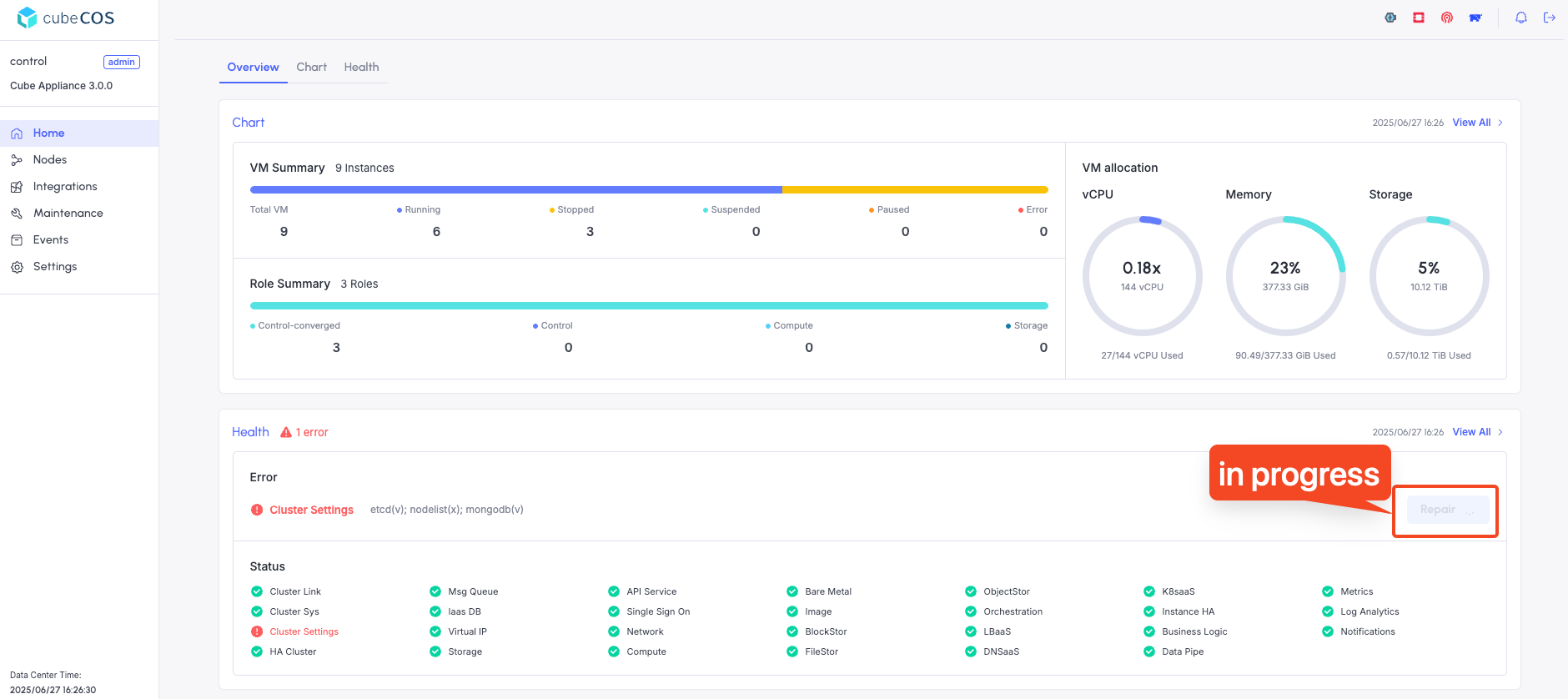

2. Repair Detected Issues: If any errors are reported, click Repair to initiate automated recovery actions.

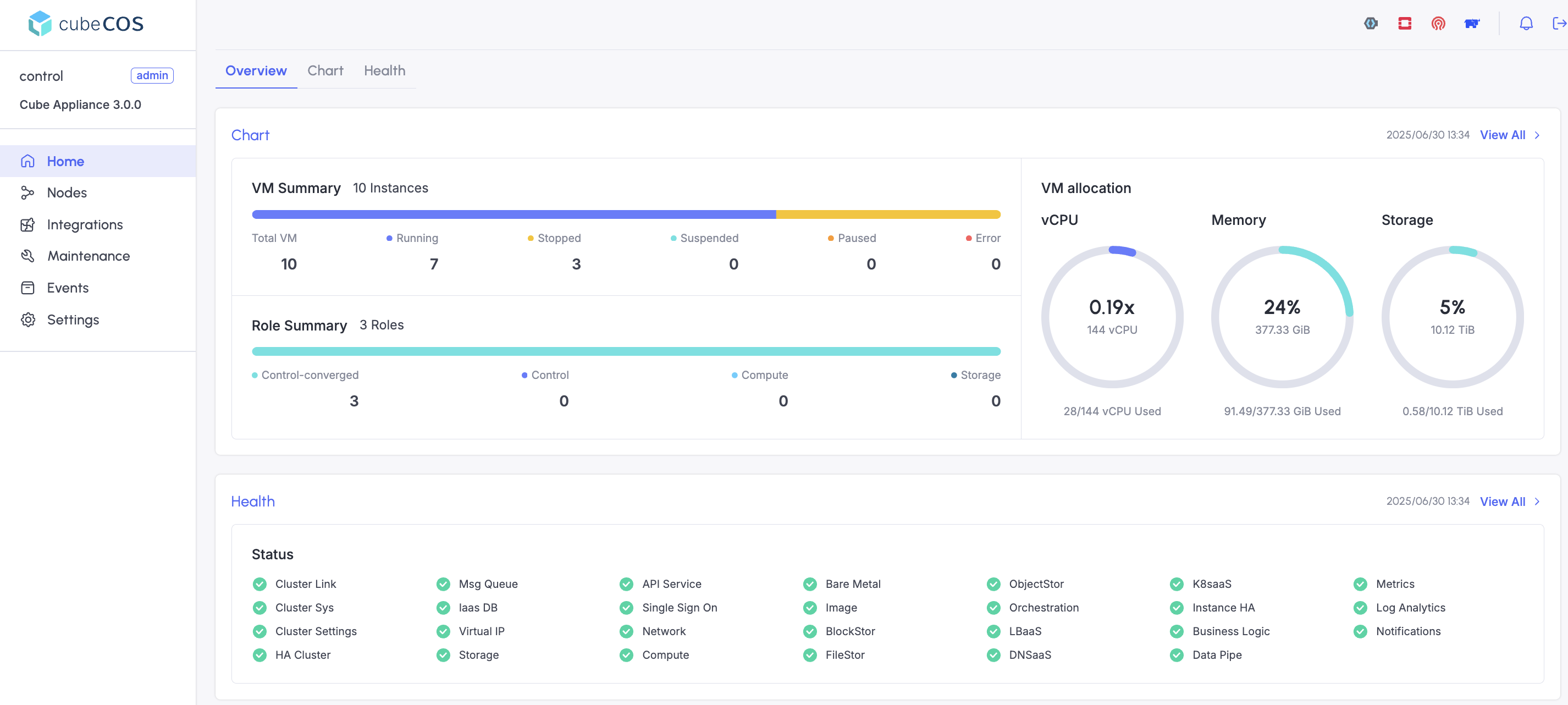

3. Verification: Confirm that all system components display a healthy status and no further issues are reported.



---

CLI repair function

Fallback Action: If the UI-based repair is unsuccessful or the issue involves complex system errors, initiate an advanced repair process.

1. Use SSH to access the CubeCOS cluster management through its virtual IP address (VIP). Log in with the admin user to access the admin CLI.

    $ ssh [email protected]
    Warning: Permanently added '192.168.1.x' (ECDSA) to the list of known hosts.
    Password:

2. Run cluster> check_repair to perform a CLI based service repair.

controller> cluster check_repair
          Service  Status  Report
      ClusterLink      ok  [ link(v) clock(v) dns(v) ]
       ClusterSys      ok  [ bootstrap(v) license(v) ]
  ClusterSettings      ok  [ etcd(v) nodelist(v) mongodb(v) ]
        HaCluster  FIXING  [ hacluster(3) ]
                       ok  [ hacluster(f) ]
         MsgQueue      ok  [ rabbitmq(v) ]
           IaasDb      ok  [ mysql(v) ]
        VirtualIp      ok  [ vip(v) haproxy_ha(v) ]
          Storage      ok  [ ceph(v) ceph_mon(v) ceph_mgr(v) ceph_mds(v) ceph_osd(v) ceph_rgw(v) rbd_target(v) ]
       ApiService      ok  [ haproxy(v) httpd(v) nginx(v) api(v) lmi(v) skyline(v) memcache(v) ]
     SingleSignOn      ok  [ k3s(v) keycloak(v) ]
          Network  FIXING  [ neutron(3) ]
                       ok  [ neutron(f) ]
          Compute  FIXING  [ nova(8) cyborg(v) ]
                       ok  [ nova(f) ]
        Baremetal      ok  [ ironic(v) ]
            Image      ok  [ glance(v) ]
        BlockStor      ok  [ cinder(v) ]
         FileStor      ok  [ manila(v) ]
       ObjectStor      ok  [ swift(v) ]
    Orchestration      ok  [ heat(v) ]
            LBaaS      ok  [ octavia(v) ]
           DNSaaS      ok  [ designate(v) ]
           K8SaaS      ok  [ rancher(v) ]
       InstanceHa      ok  [ masakari(v) ]
    BusinessLogic      ok  [ senlin(v) watcher(v) ]
         DataPipe      ok  [ zookeeper(v) kafka(v) ]
          Metrics      ok  [ monasca(v) telegraf(v) grafana(v) ]
     LogAnalytics      ok  [ filebeat(v) auditbeat(v) logstash(v) opensearch(v) opensearch-dashboards(v) ]
    Notifications      ok  [ influxdb(v) kapacitor(v) ]
