Create a Load Balancer

A Load Balancer distributes incoming network traffic across multiple servers to ensure no single server becomes overwhelmed. This helps improve performance, reliability, and availability of applications.

info

USB storage devices are blocked by default. If accessing USB devices is needed, please set the tuning option cubesys.probeusb to true using CLI > tuning > configure after logging in as admin.

Prerequisite

1. Download the Amphoraimage: amphora-x64-haproxy_yoga
2. Use scp to upload the downloaded image to the Glance image directory /mnt/cephfs/glance
   1. From a computer with management access to your cluster VIP: scp amphora-x64-haproxy_yoga.qcow2 root@<cluster-vip>:/mnt/cephfs/glance/
3. Login to the admin shell
4. Run the following command to import the load balancer image: image import_lb

cc1> image import_lb
  1: usb
  2: local
  Enter index: 2
  1: amphora-x64-haproxy-yoga.qcow2
  Enter index: 1
  Importing...
  [13:49:33] Converting image to RAW format ...
      (100.00/100%)
  [13:49:36] Creating image amphora-x64-haproxy ...
  [=============================>] 100%
  b726a8b9-d6a8-492c-8102-9247c252d779
  [13:50:04] Finished creating image amphora-x64-haproxy
  Importing  complete. It is safe to remove the local image file.

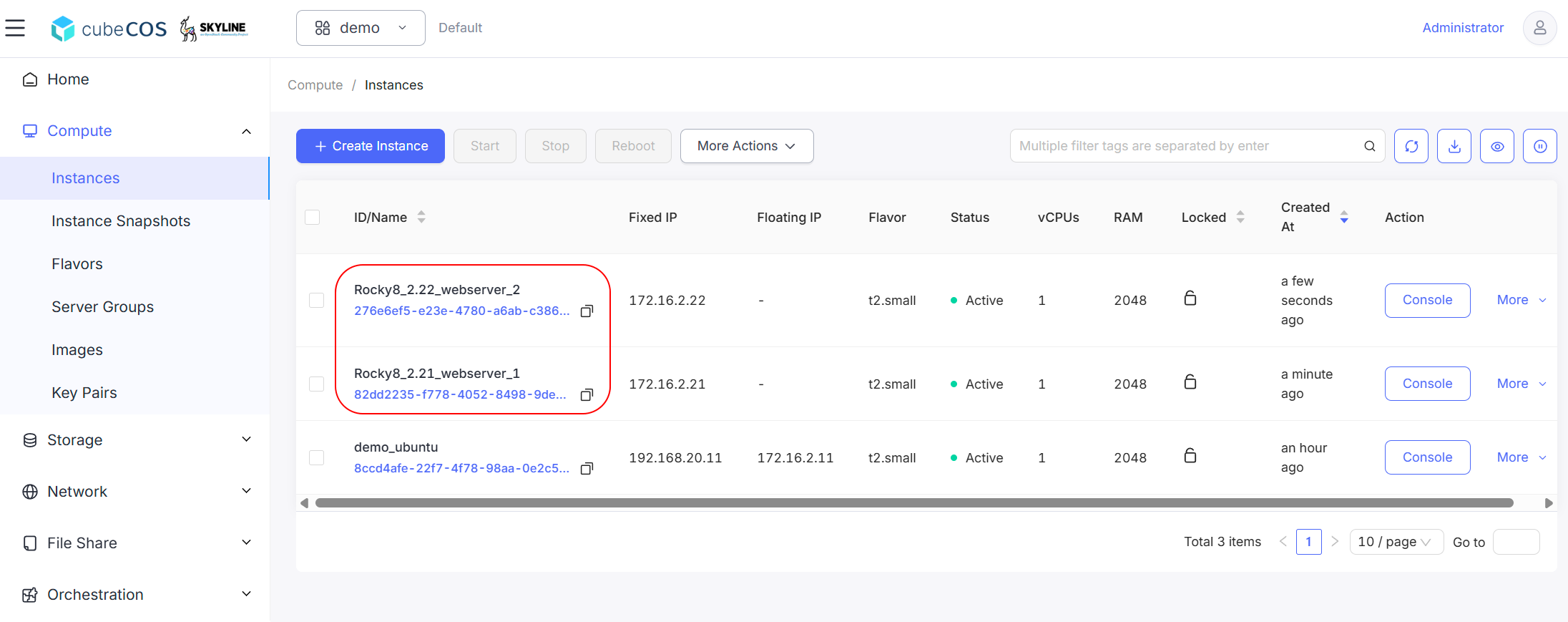

2. Setup at least two instances to be members in load balancer pool(Optional)

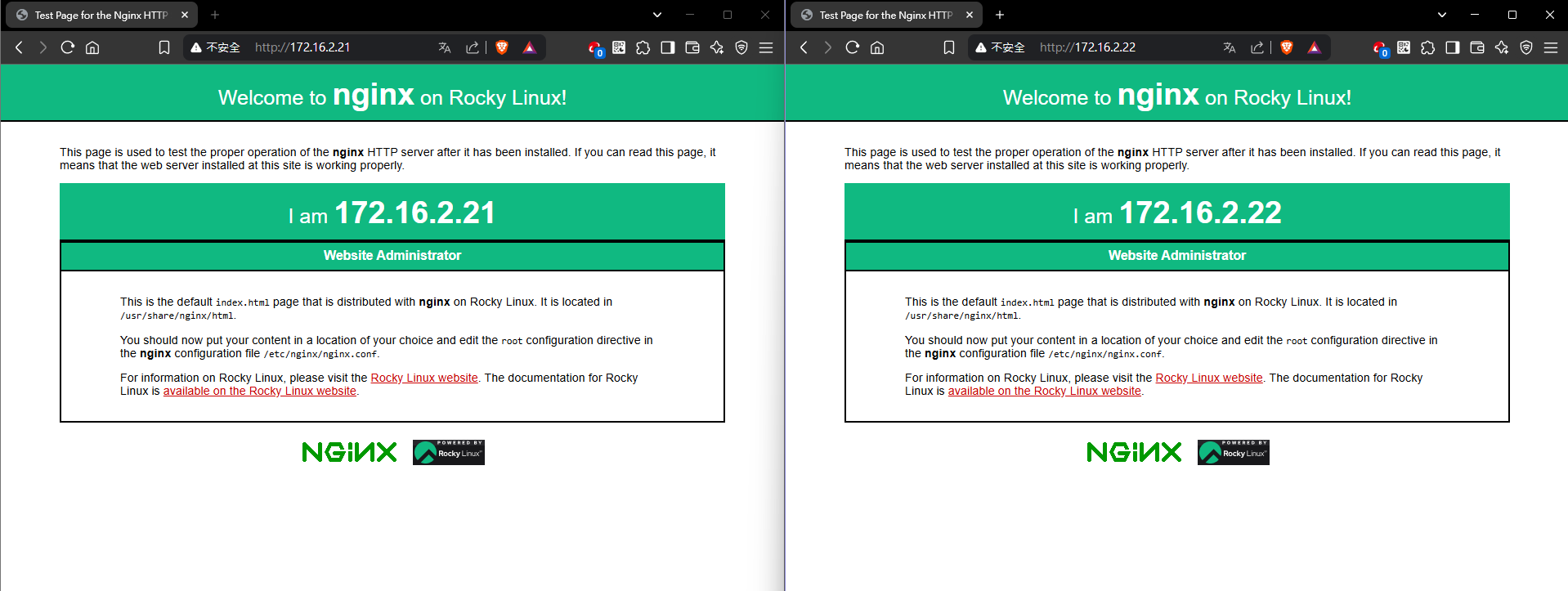

Demonstration below set up two Rocky8 web server intances with Nginx, set http protocol with port 80 hosting website.

Create Load Balancer

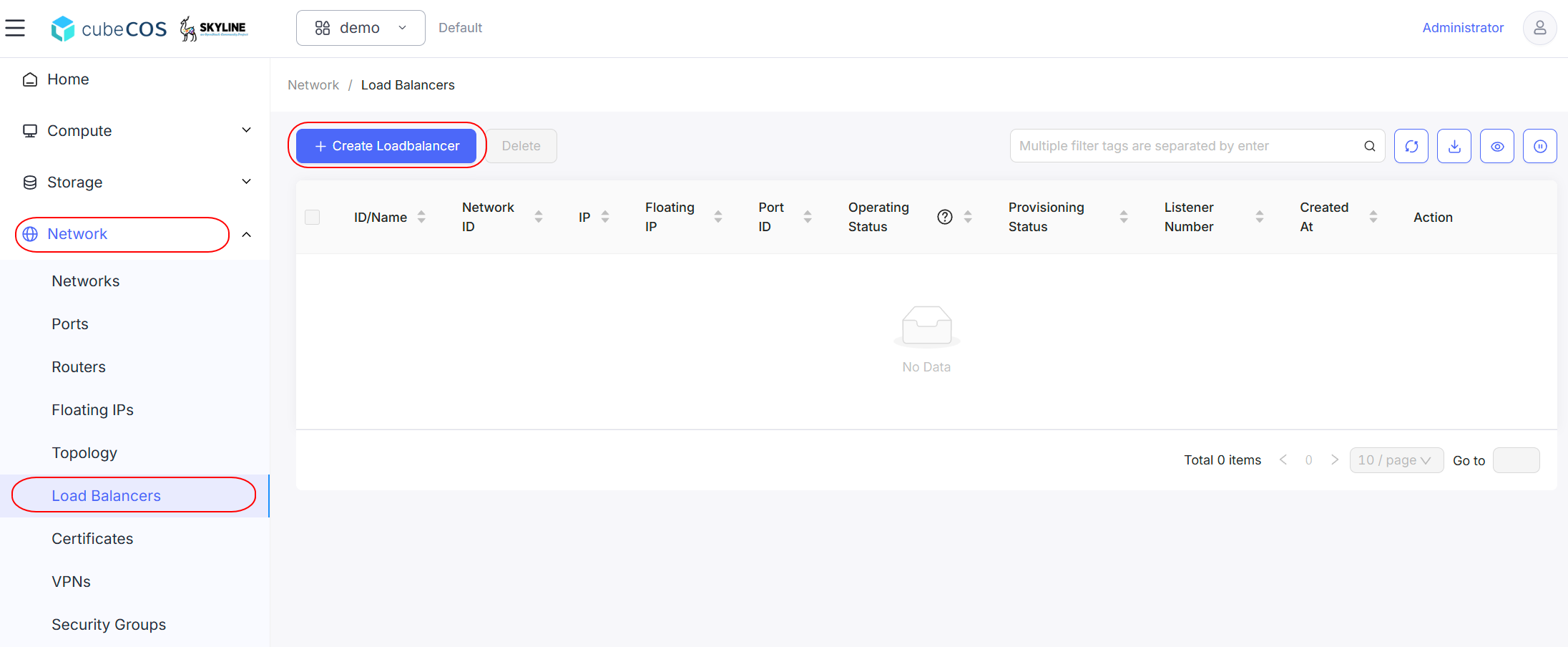

1. Navigate to Project > Network > Load Balancers > + Create Load Balancer.

2. There are five configuration steps to complete before creating load balancer.

• Base Config
• Listener Detail
• Pool Detail
• Member Detail
• Health Monitor Detail

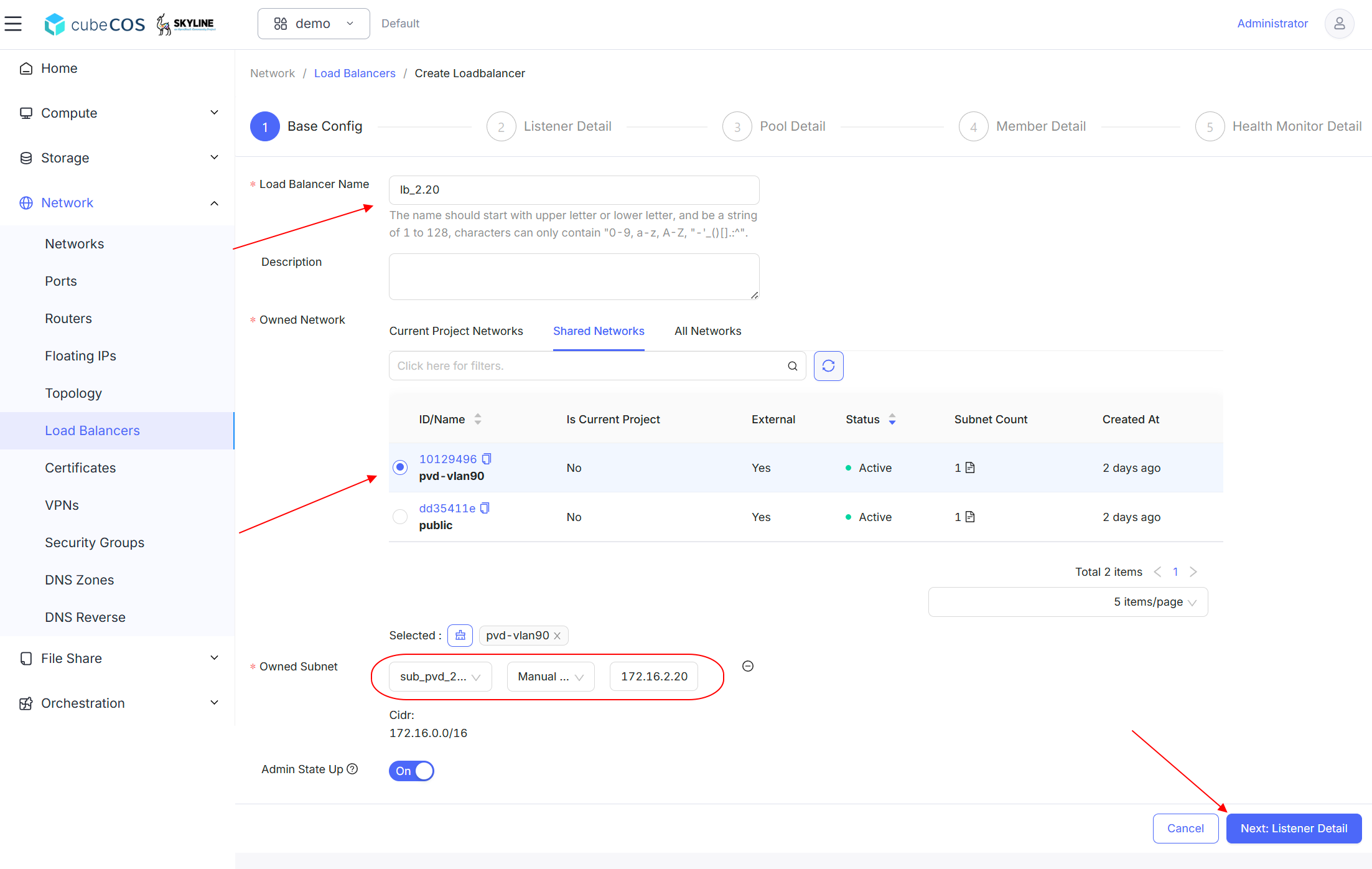

3. Base Config

   • *Load Balancer Name : Input the desired load balancer name.
   • Description : Additional description of the load balancer.
   • *Owned Network : Select the desired network interfaces and subnets for the load balancer.
   • Admin State Up : Defines the admin state of the port(Defaul On).

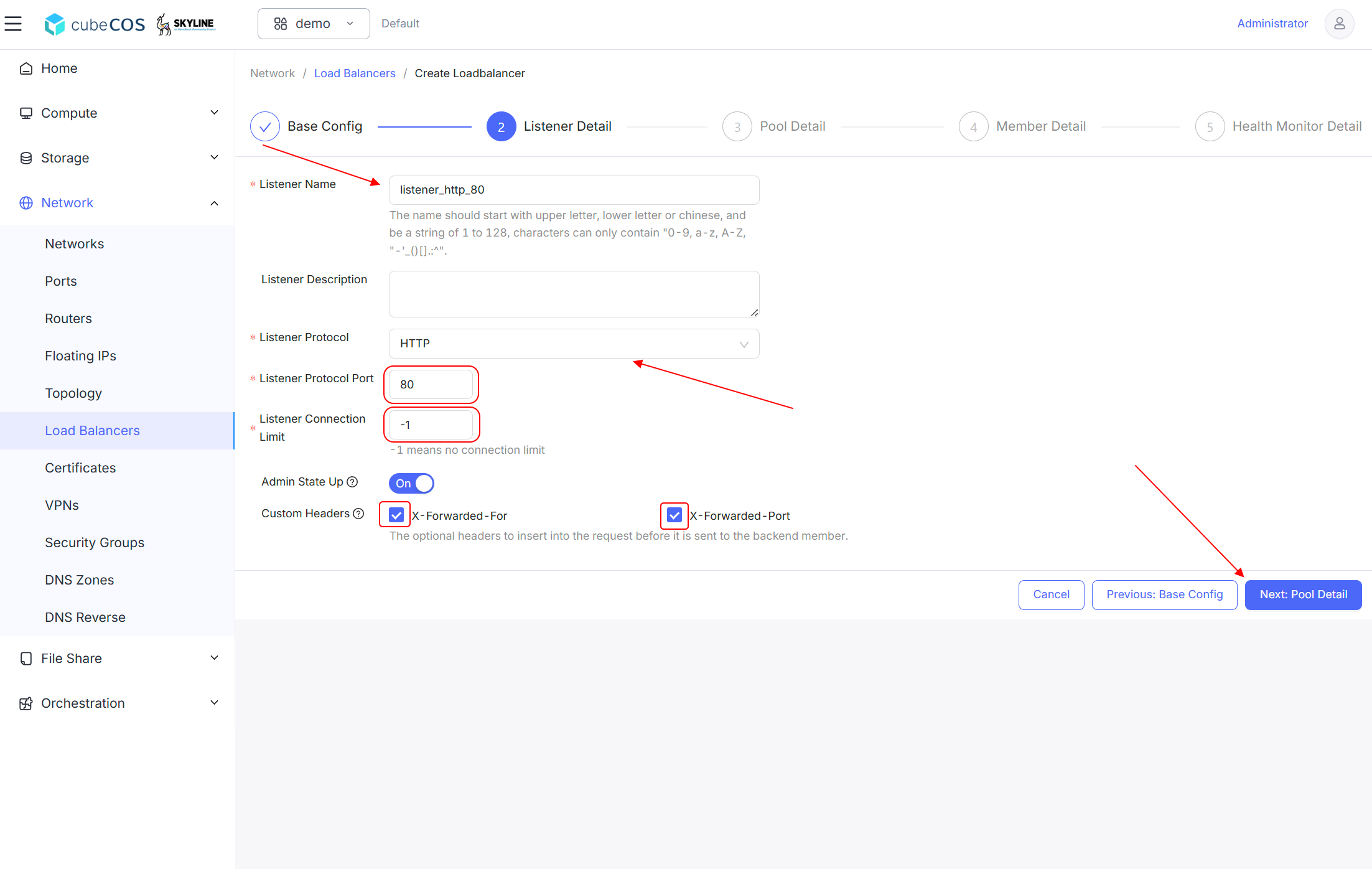

4. Listener Detail

   • *Listener Name : Input the desired listener name.

   • Listener Description : Additional description of the listener.

   • *Listener Protocol : Select the desired protocol for the listener.Supported Protocol types listed below

     • HTTP
     • TCP
     • HTTPS
     • UDP

   • *Listener Protocol Port : Port for listener through protocol selected above.

   • *Listener Connection Limit : limitation counts of connections to the listener at the same time(Defaul -1).

     -1 means no connection limit

   • Admin State Up : Defines the admin state of the listener(Defaul On).

   • Custom Headers : Optional headers to insert into the request before it is sent to the backend member

     • X-Forwarded-For : Specify the client IP address
     • X-Forwarded-Port : Specify the listener port

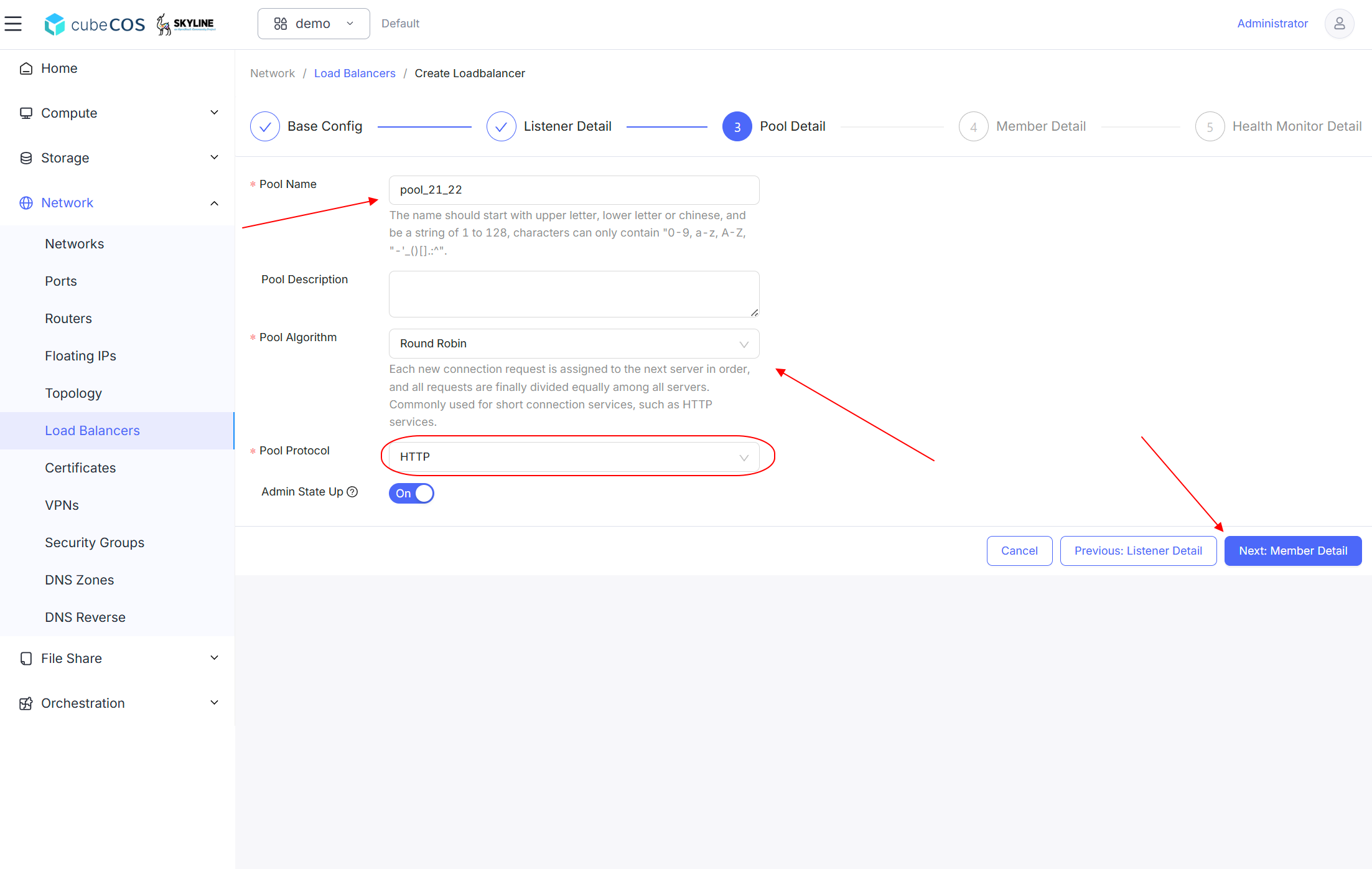

5. Pool Detail :

   • *Pool Name : Input the desired pool name.

   • Pool Description : Additional description of the pool.

   • *Pool Algorithm : Select the desired algorithm for the pool. Supported Algorithm types listed below

     • Least Connections
     • Round Robin
     • Source IP

   • *Pool Protocol : Select the desired protocol for the pool. Based on Listener Protocol selection set up before.

   • Admin State Up : Defines the admin state of the pool(Defaul On).

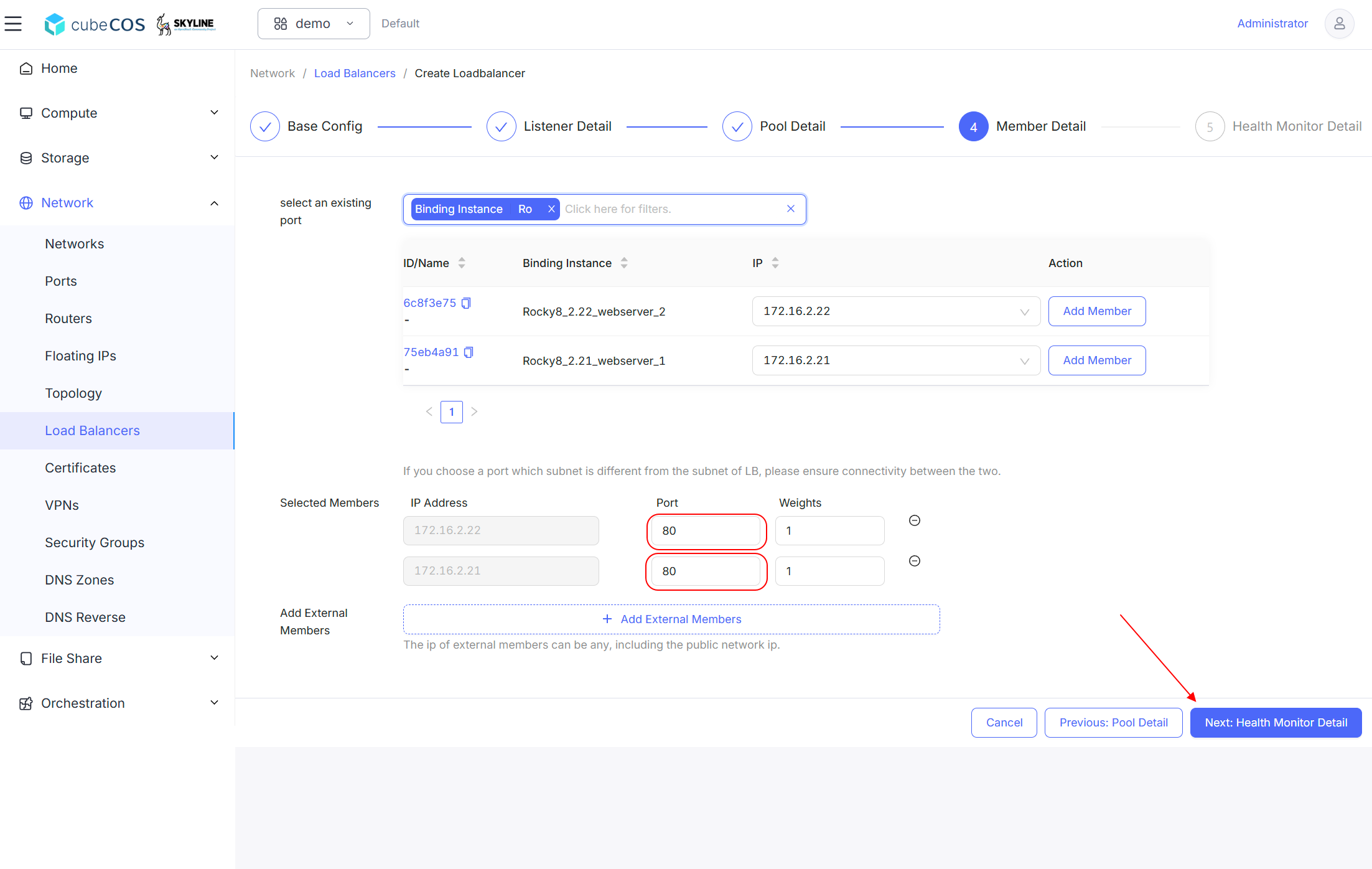

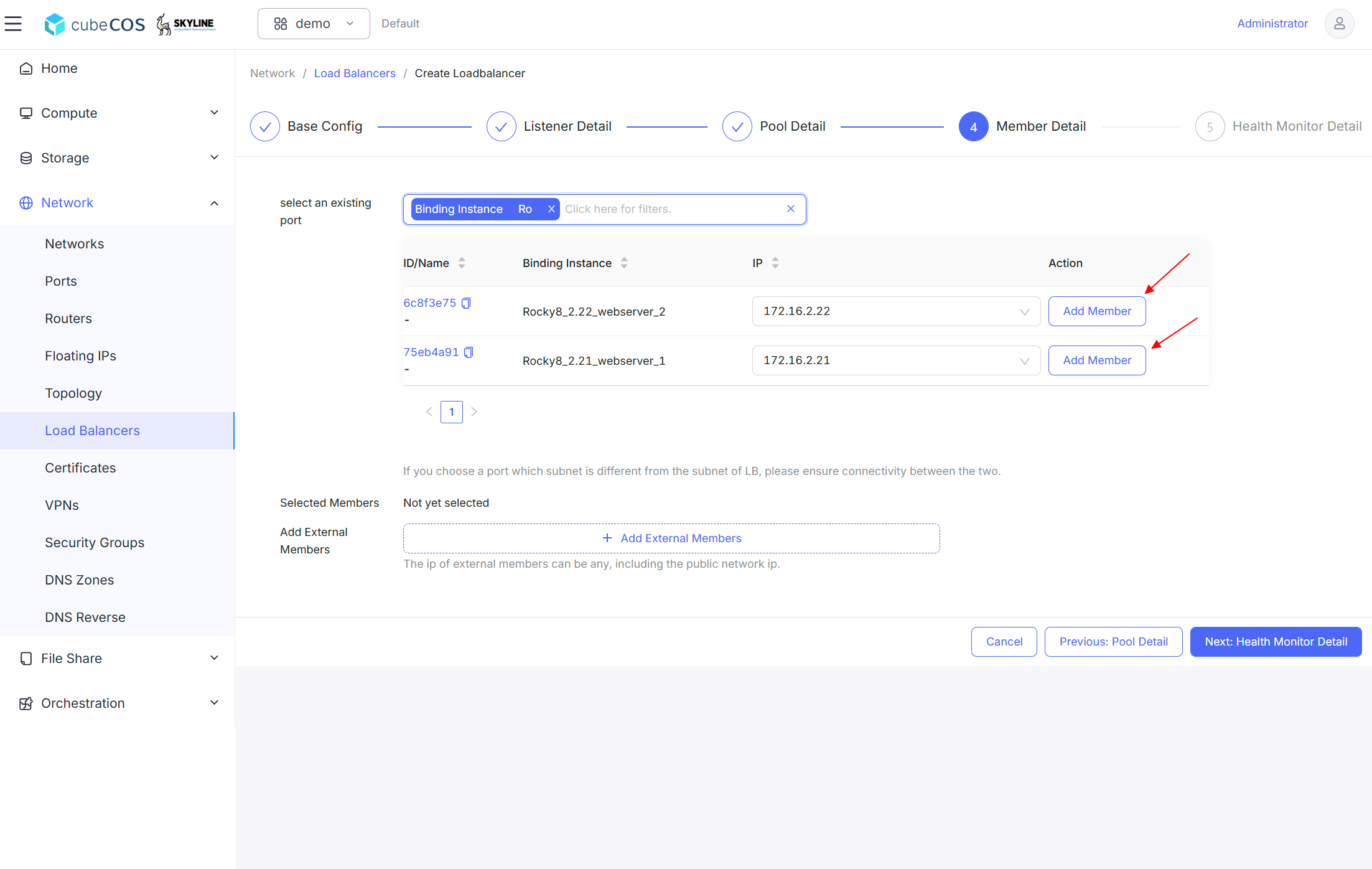

6. Member Detail

   Select exsist intances from select an existing port. Members will be add to Selected Members by clicking Add Member button.



   Assign specific port of the instances selected.

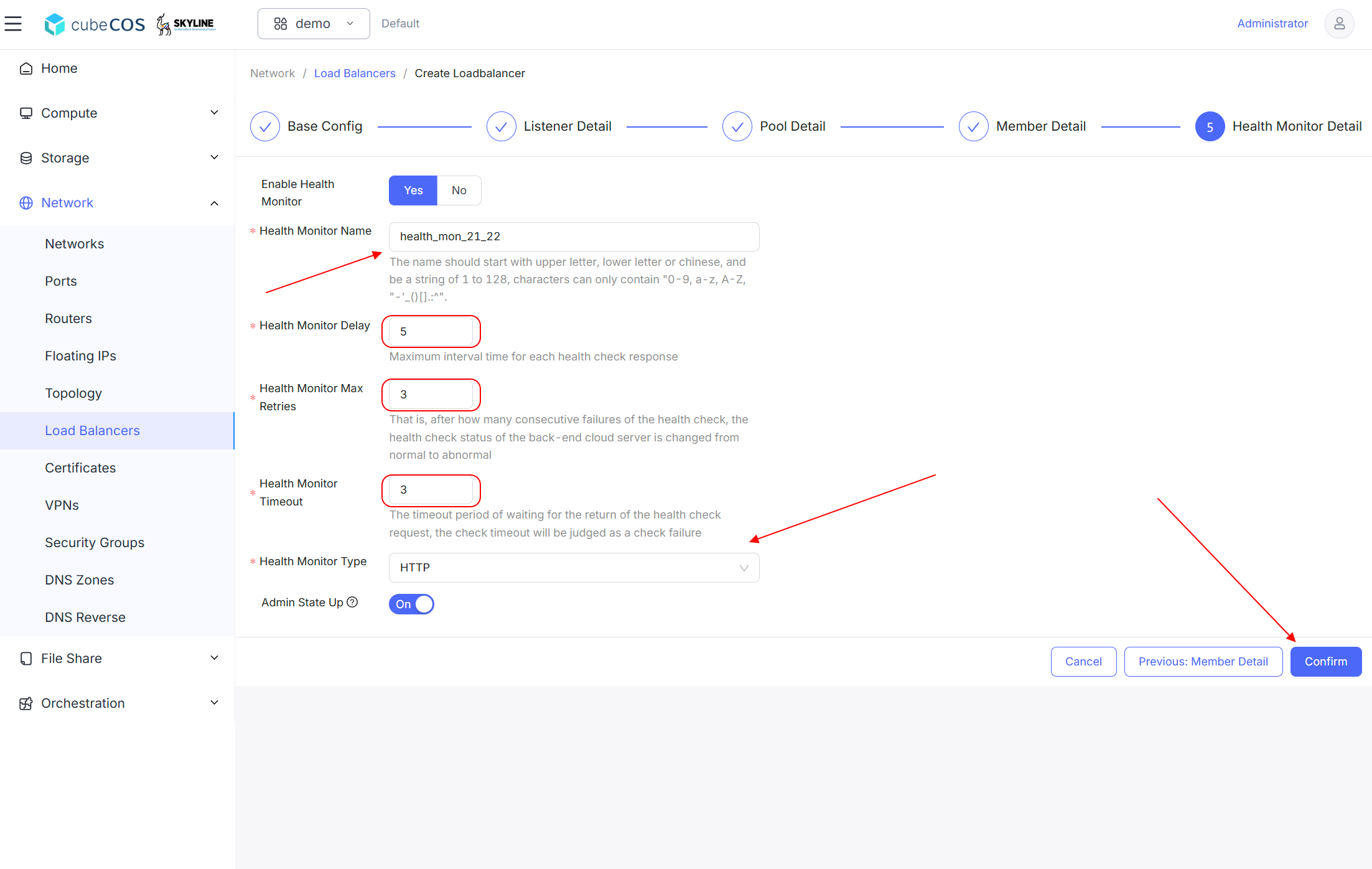

7. Health Monitor Detail

   • Enable Health Monitor : Switch to enable / disable health monitor(Default YES).

   • *Health Monitor Name : Input the desired health monitor name.

   • *Health Monitor Delay : Maximum interval time for each health check response(Default 5).

   • *Health Monitor Max Retries : Counts of consecutive failures of the health check will switch status of the back-end cloud server from normal to abnormal(Default 3).

   • *Health Monitor Timeout : Timeout period of waiting for the return of the health check request, the check timeout will be judged as a check failure(Default 3).

   • *Health Monitor Type : Select the desired protocol for the health monitor. Based on Listener Protocol selection set up before.

   • Admin State Up : Defines the admin state of the health monitor(Defaul On).

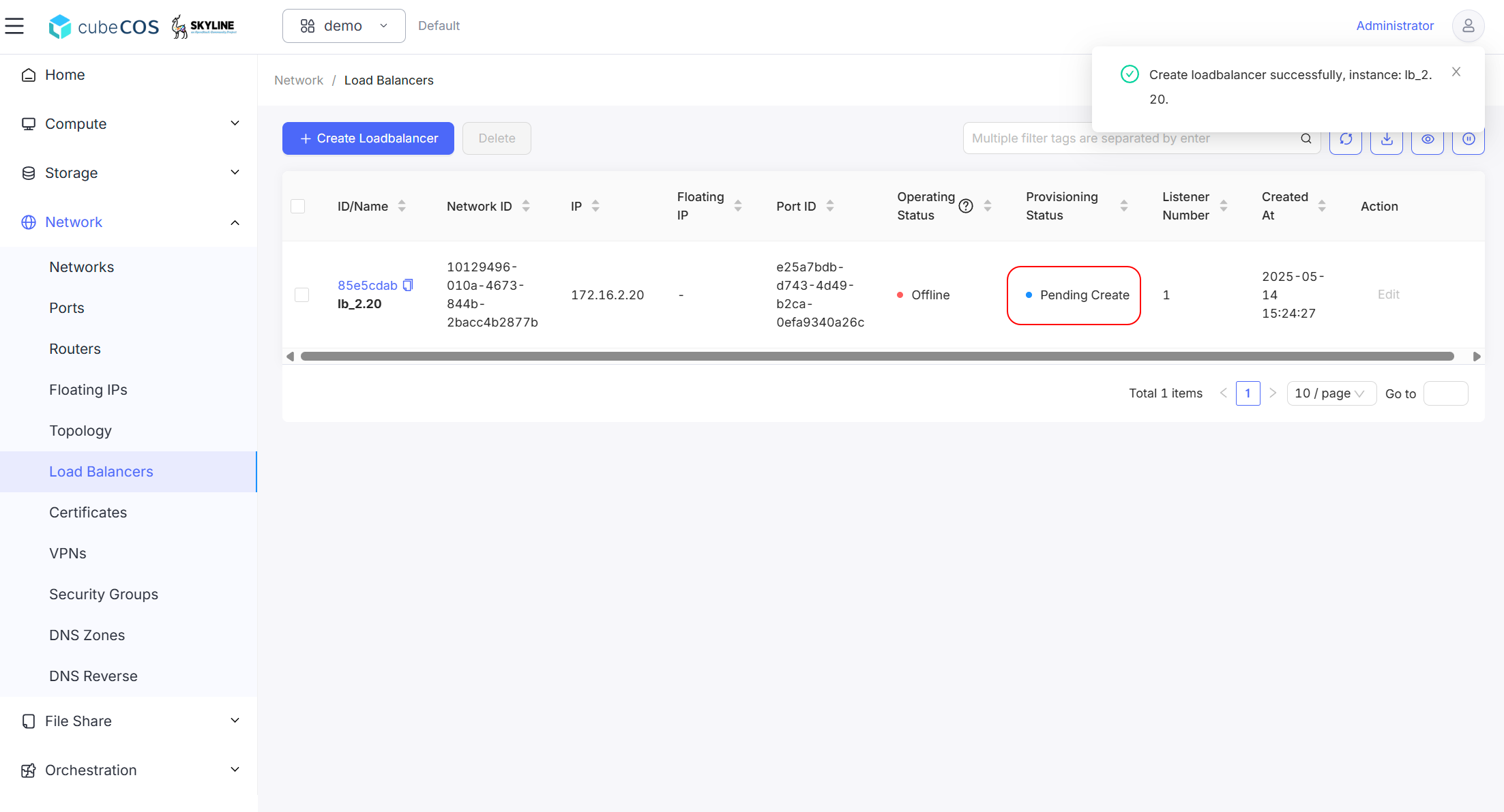

8. Launch the load balancer, verify the status of the load balancer will be Pending Create

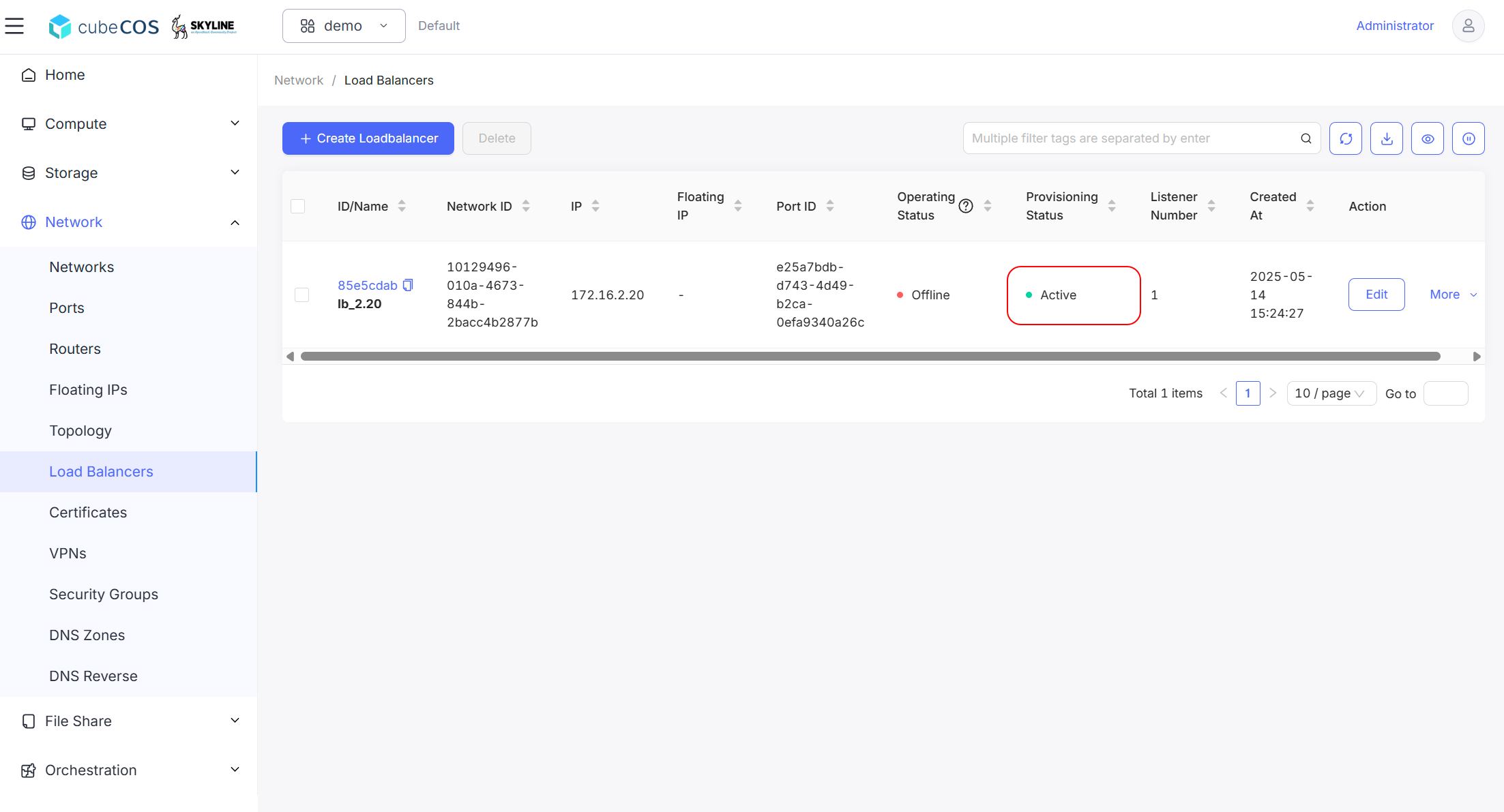

9. Wait till the load balancer status become Activate

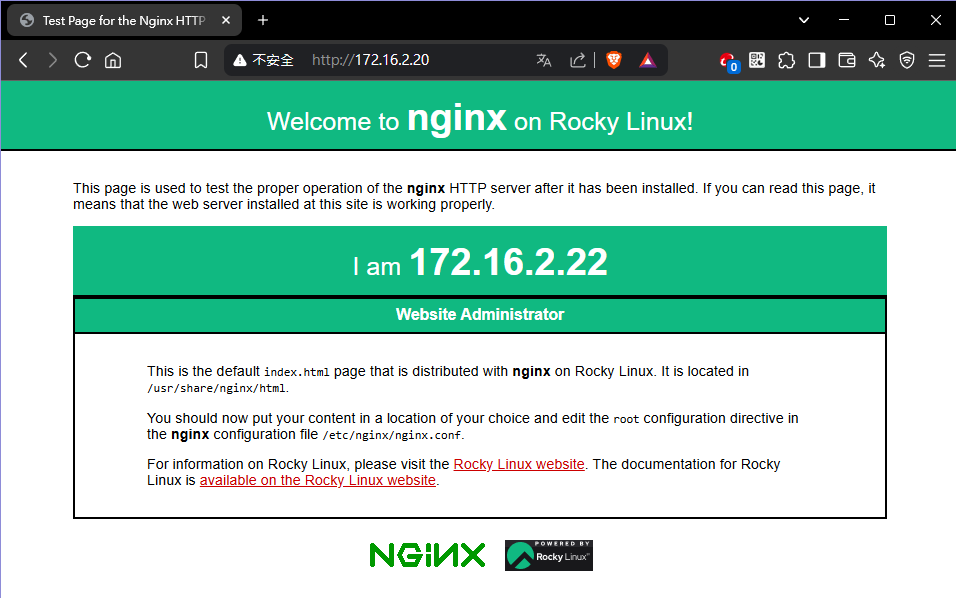

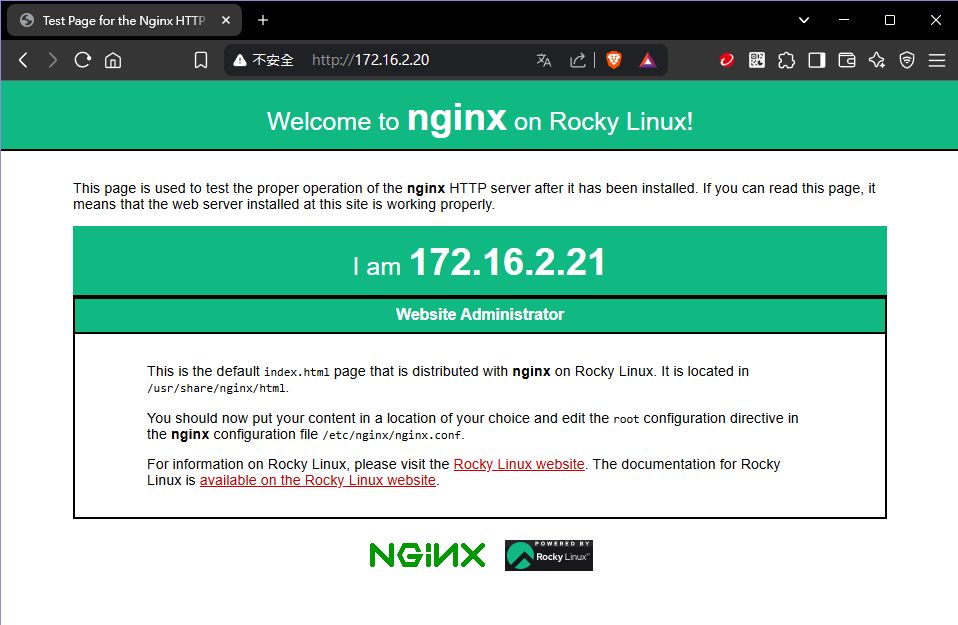

10. Verify load balancer reliability by accessing website. Terminate or add loading to a instance in the pool to test.
