Allowed Address Pairs

In CubeCOS, Allowed Address Pairs is a network security feature provided by Neutron that allows a virtual machine’s (VM’s) network interface (port) to be configured with additional IP addresses. This enables users to configure multiple IP aliases within the guest operating system, while ensuring that Neutron allows traffic to and from those additional addresses.

Edit network port to allocate Allowed Address Pairs

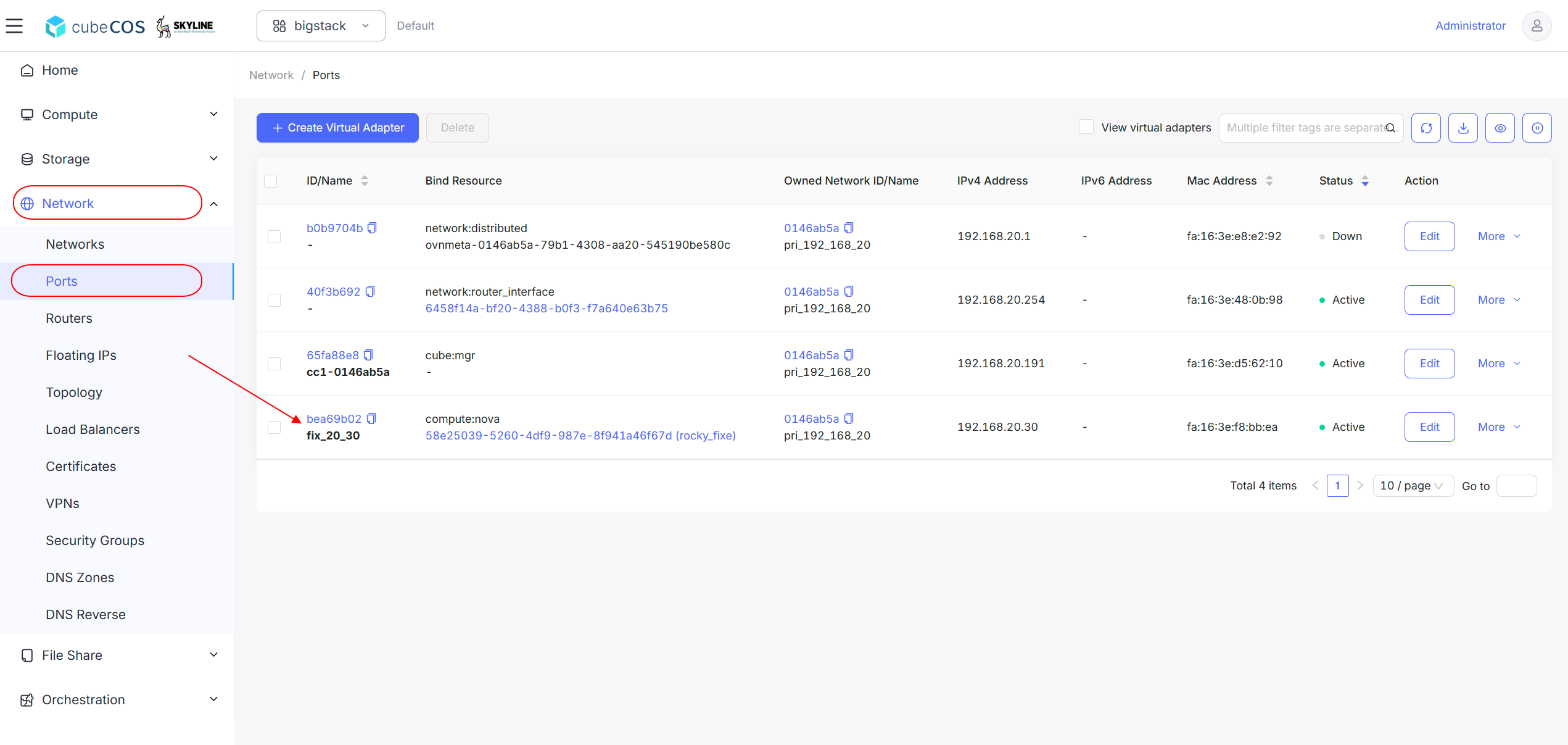

1. Navigate to Project > Network > Ports, then click desired port.

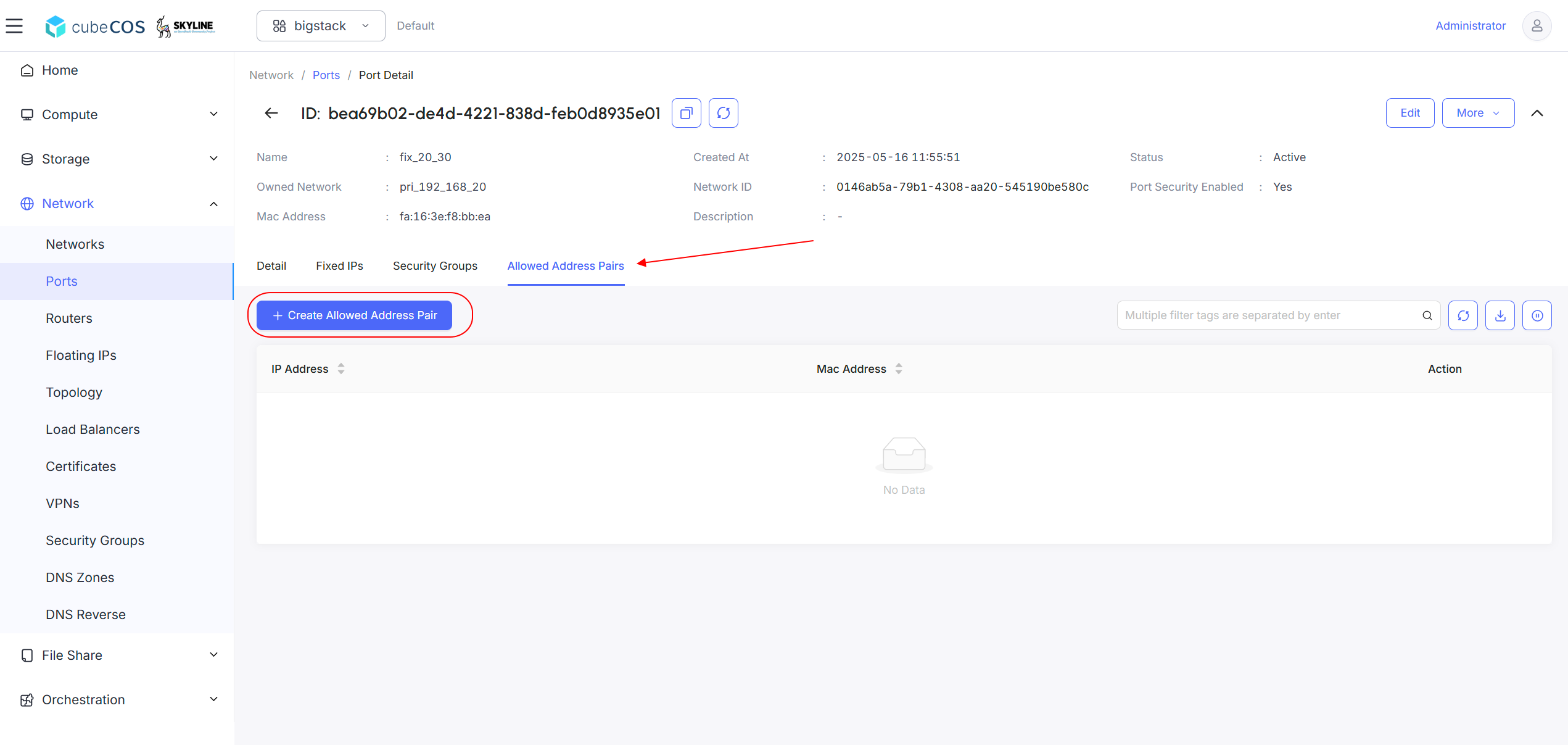

2. Click Allowed Address Pairs on the banner, then click + Create Allowed Address Pairs

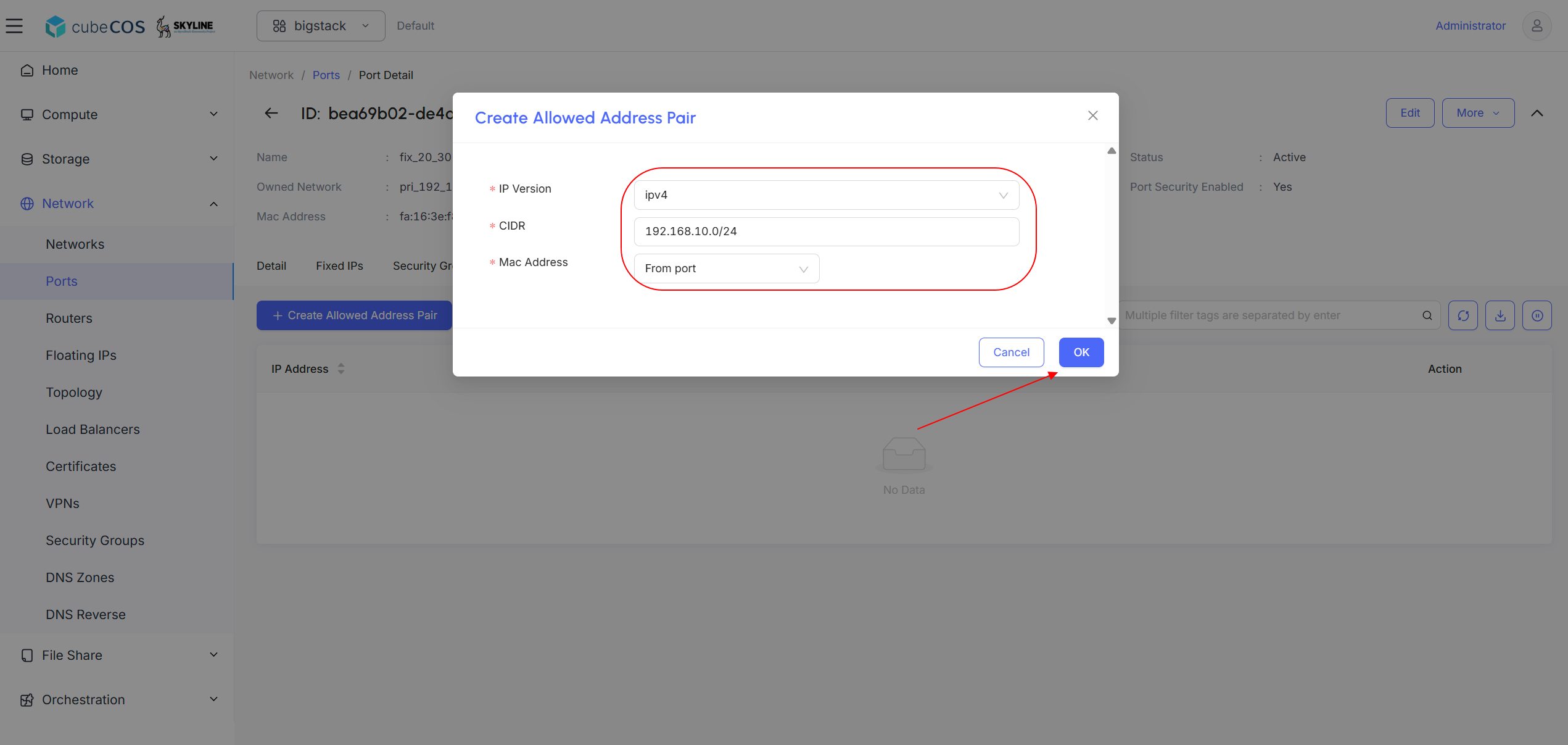

3. Select IP Version then assign CIDR and MAC. Click OK to proceed.

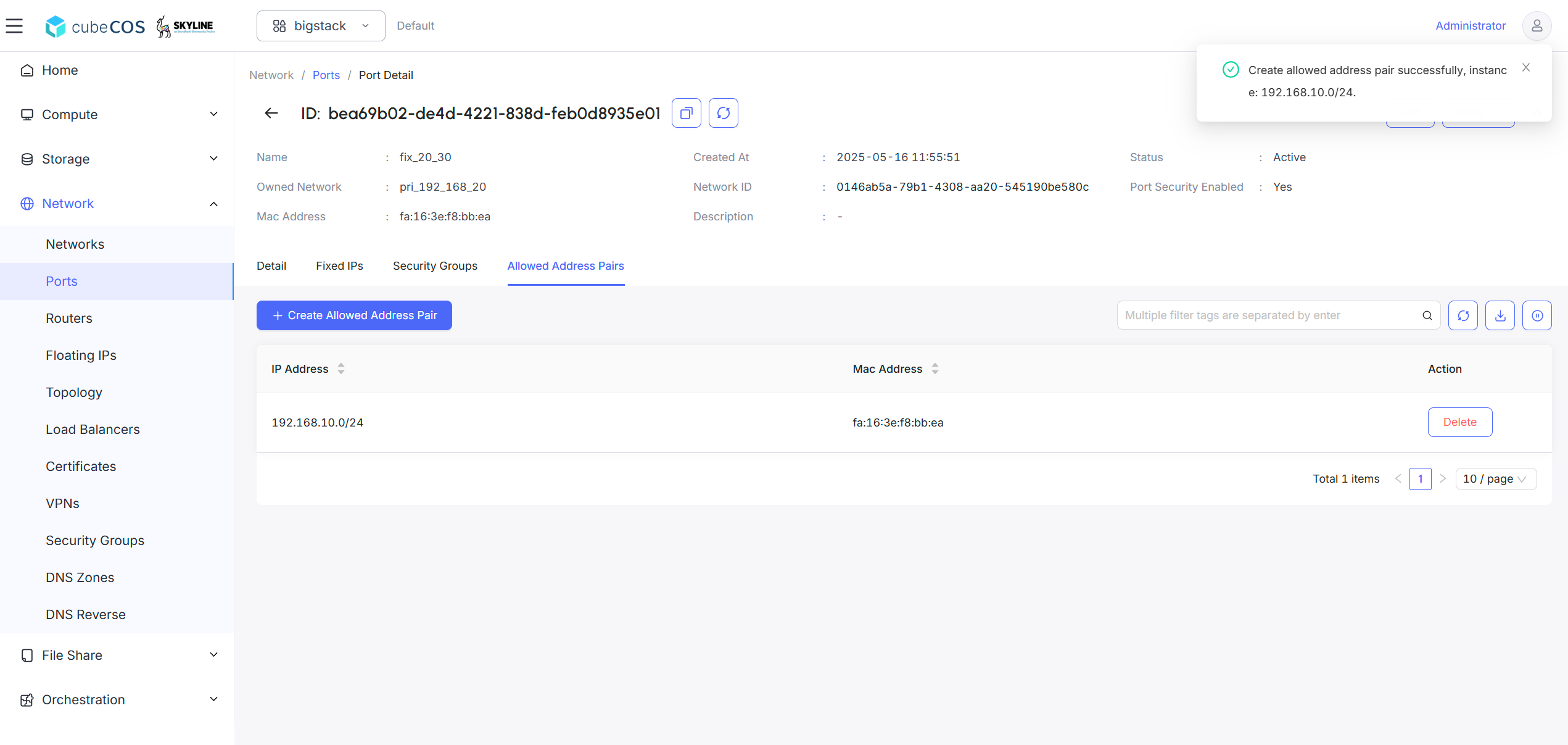

4. Verify Allowed Address Pairs creation.
