Version: 3.0

Create a external/internet network with flat

Flat Networking uses Ethernet interfaces set up in bridge mode to enable seamless network traffic flow between all nodes. This configuration can be implemented using either a single network adapter on the physical host or multiple adapters, depending on the setup.

  1. Navigate to Administrator

    /assets/img/v3.0.0/flat-1.png

  2. Navigate to Network > Networks > + CREATE NETWORK

    /assets/img/v3.0.0/flat-2.png

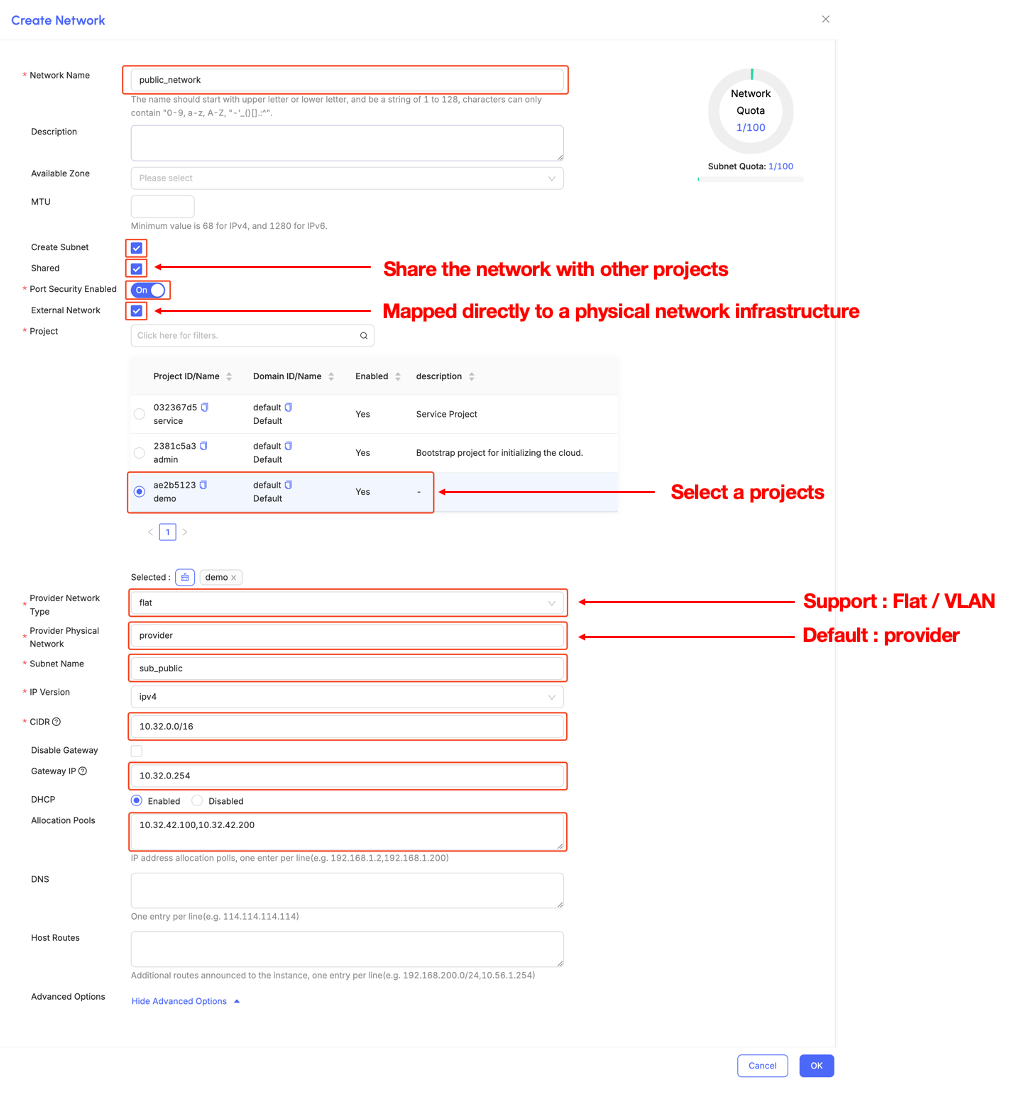

  3. Please follow the configuration provided below

    /assets/img/v3.0.0/flat-3.png
