Create a external/internet network with vlan

VLAN is a networking technology that allows a single switch to function like multiple separate switches. Hosts on different VLANs can’t see each other’s traffic. CubeCOS uses VLANs to isolate project traffic, even if instances run on the same host. Each VLAN is identified by an ID from 1 to 4095.

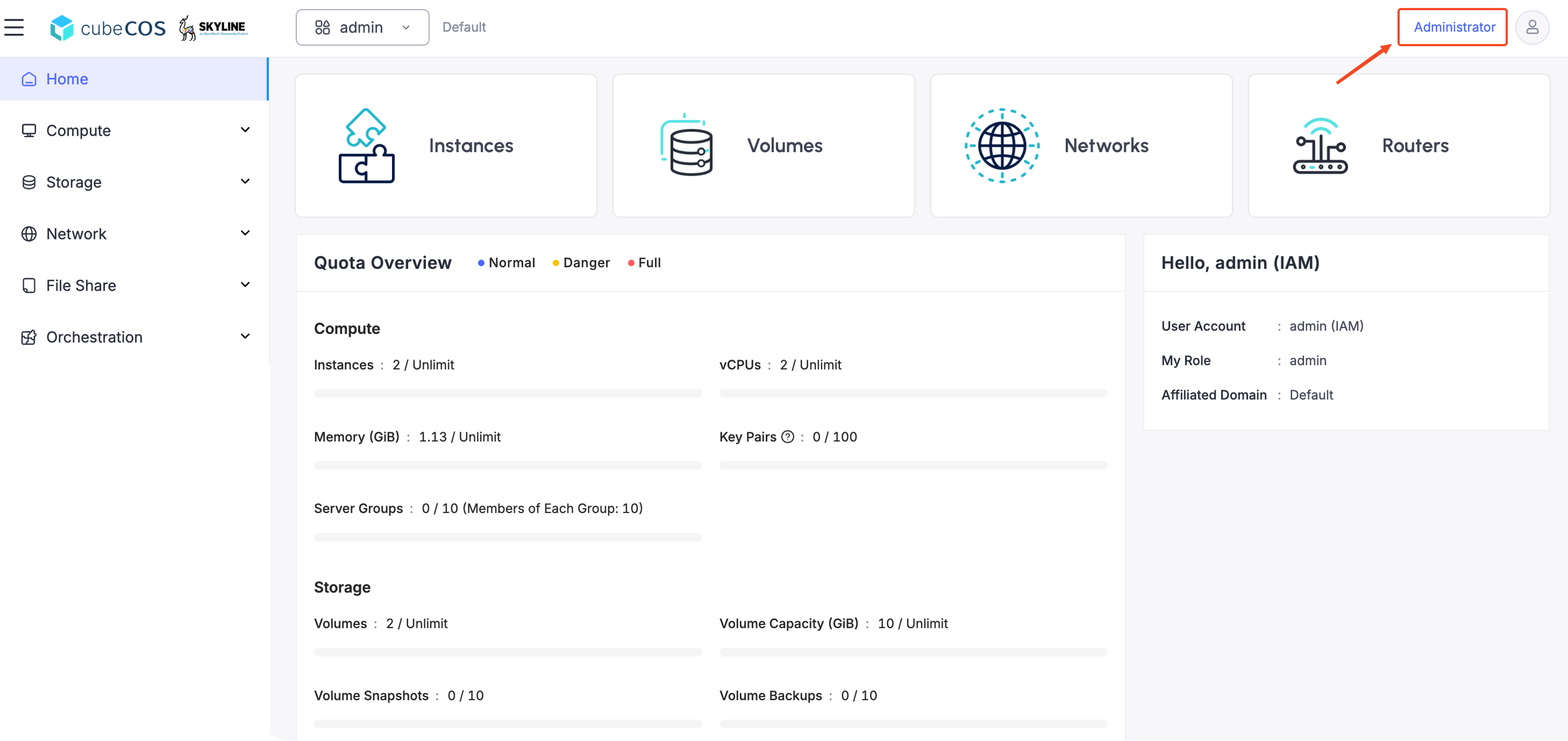

  1. Navigate to Administrator

    /assets/img/v3.0.0/flat-1.png

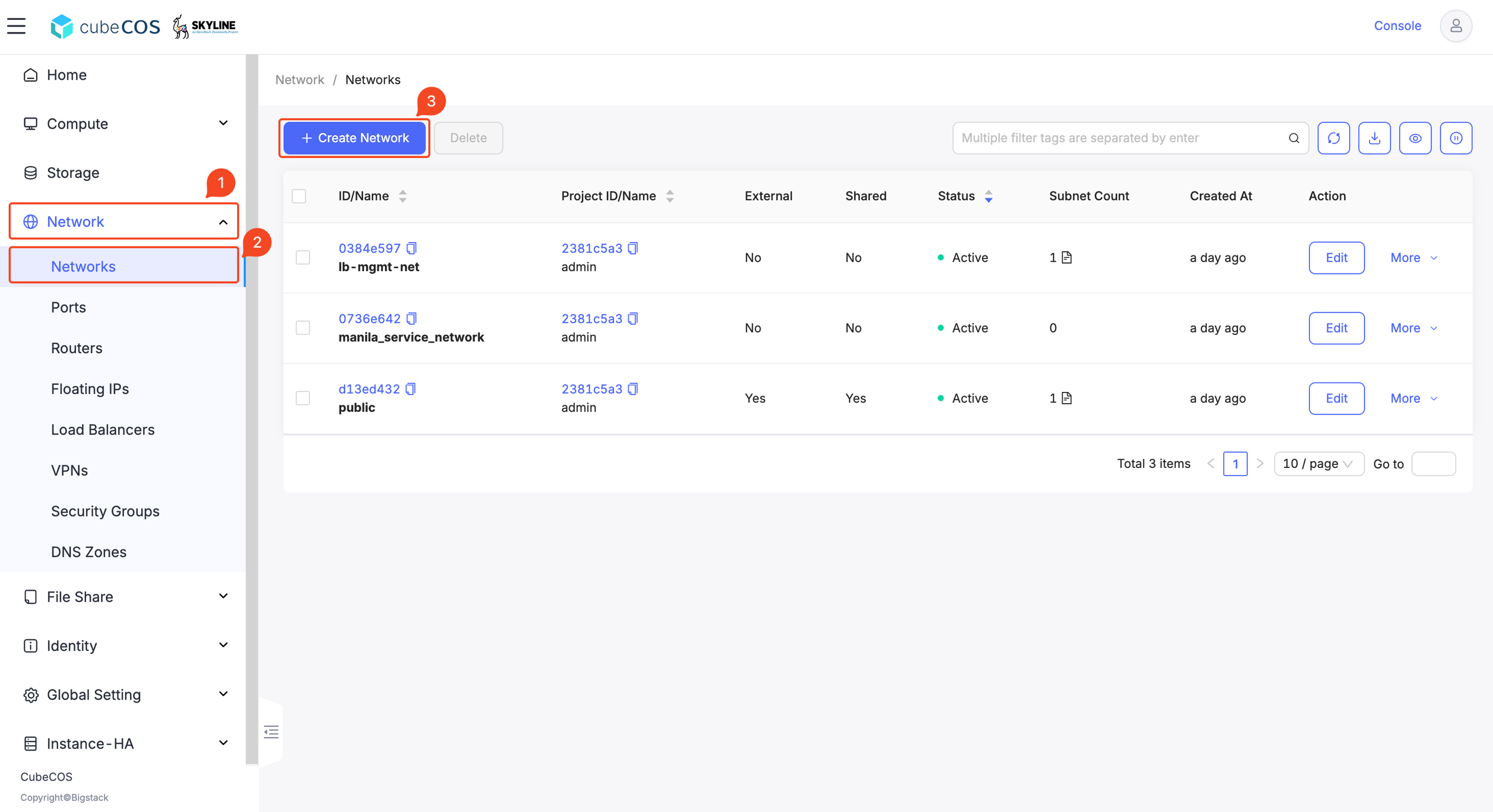

  2. Navigate to Network > Networks > + CREATE NETWORK

    /assets/img/v3.0.0/flat-2.png

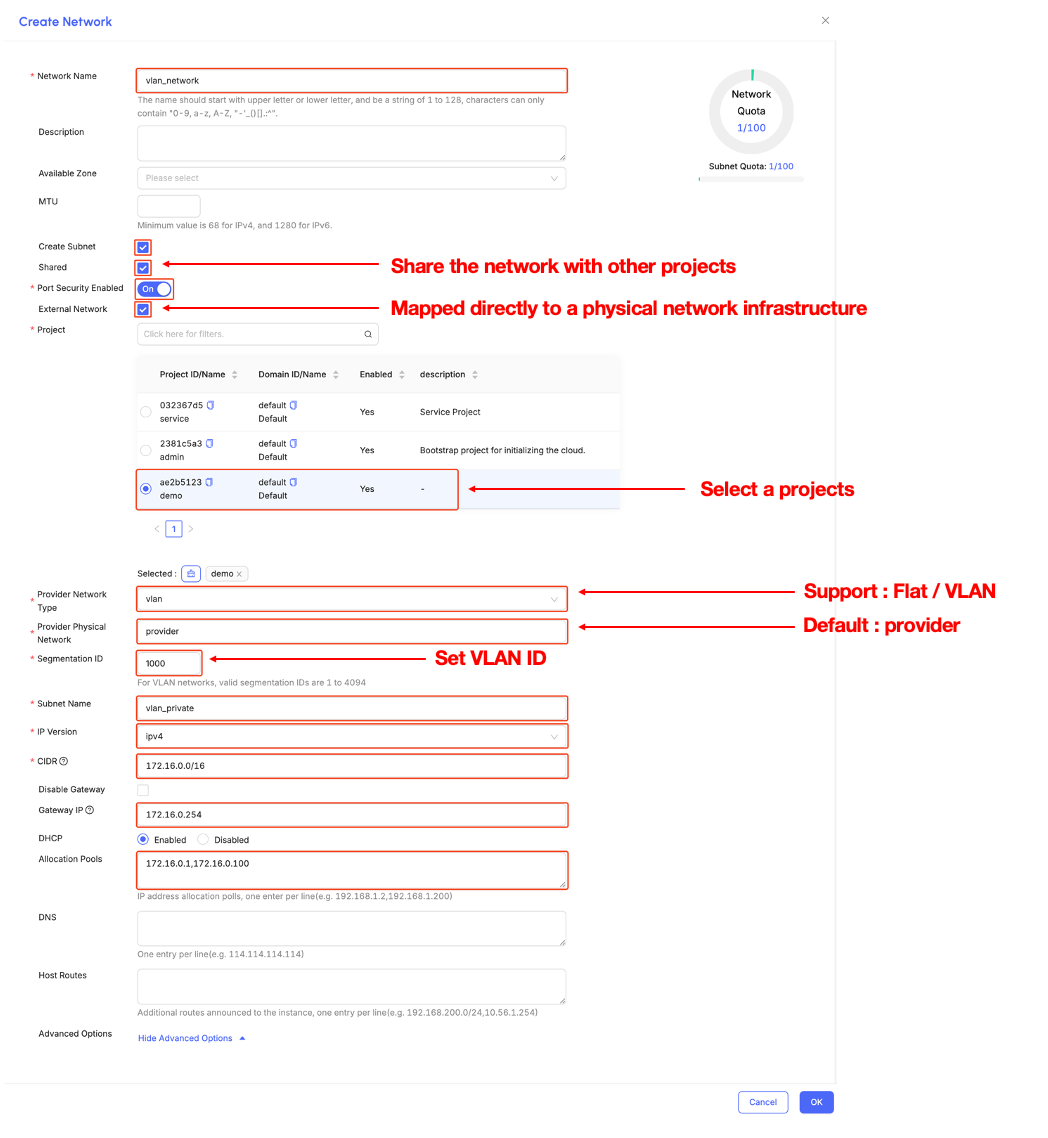

  3. Please follow the configuration provided below

    /assets/img/v3.0.0/vlan-3.png
