Create a tenant sharing
USB storage devices are blocked by default. If accessing USB devices is needed, please set the tuning option cubesys.probeusb
to true
using CLI > tuning > configure
after logging in as admin.
Create a share server and share its volumes with others VM on the same network​
Pre-task​
- Upload manila-service-image_yoga to
/mnt/cephfs/glance
- import with cli
import_fs
cc1> image import_fs
1: usb
2: local
Enter index: 2
1: manila-service-image-yoga.qcow2
Enter index: 1
Importing...
[16:54:04] Converting image to RAW format ...
(100.00/100%)
[16:54:07] Creating image manila-service-image ...
[=============================>] 100%
669320d1-7b8e-4a7e-85a0-79e5ea54abe6
[16:54:57] Finished creating image manila-service-image
Importing complete. It is safe to remove the local image file.
Create Share Networks​
-

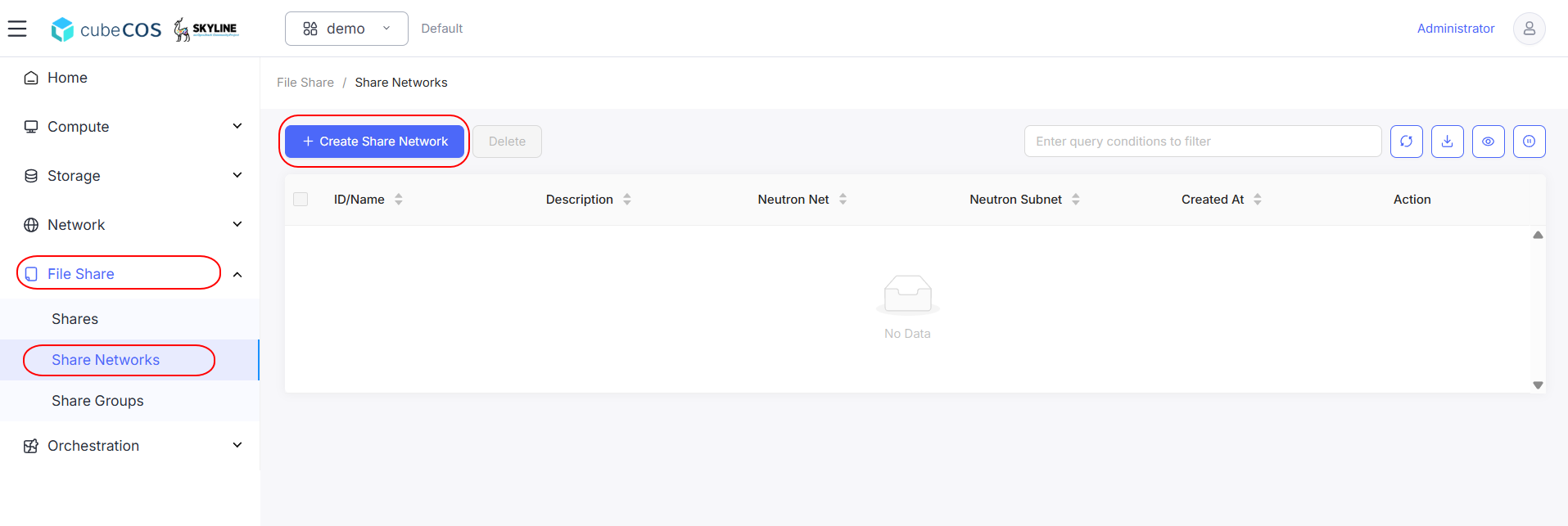

Navigate to
Project > File Share > Share Networks
>+ Create Share Network
. -

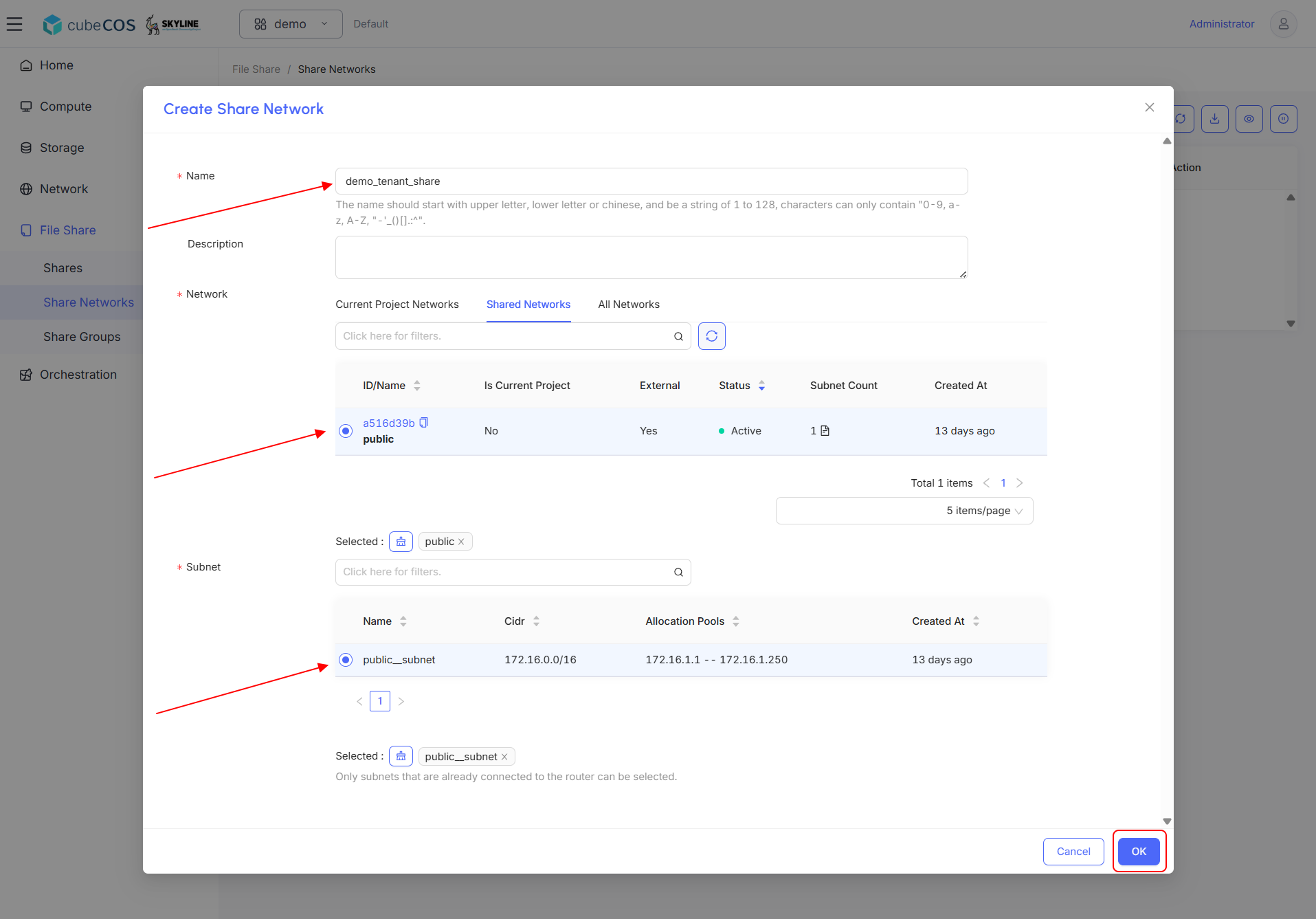

Name the SHARE NETWORK, select desired Network and Subnets for sharing. Click
OK
to proceed. -

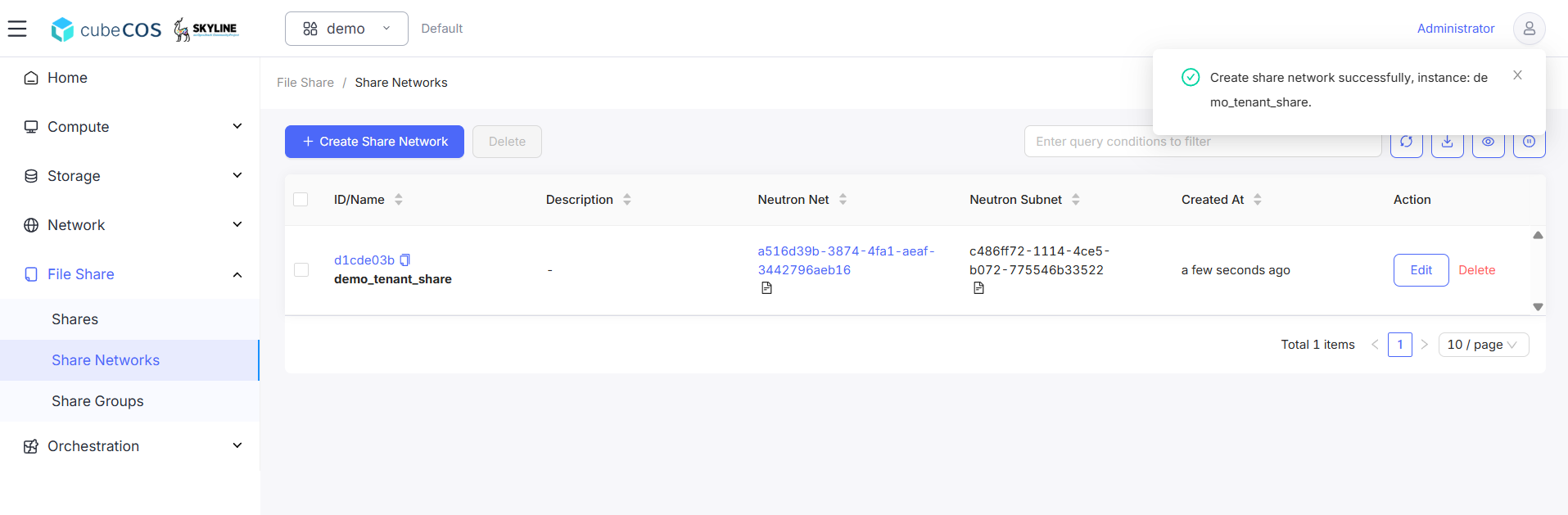

Verify Share Network by checking dashboard.
Create a Share - tenant share type​
-

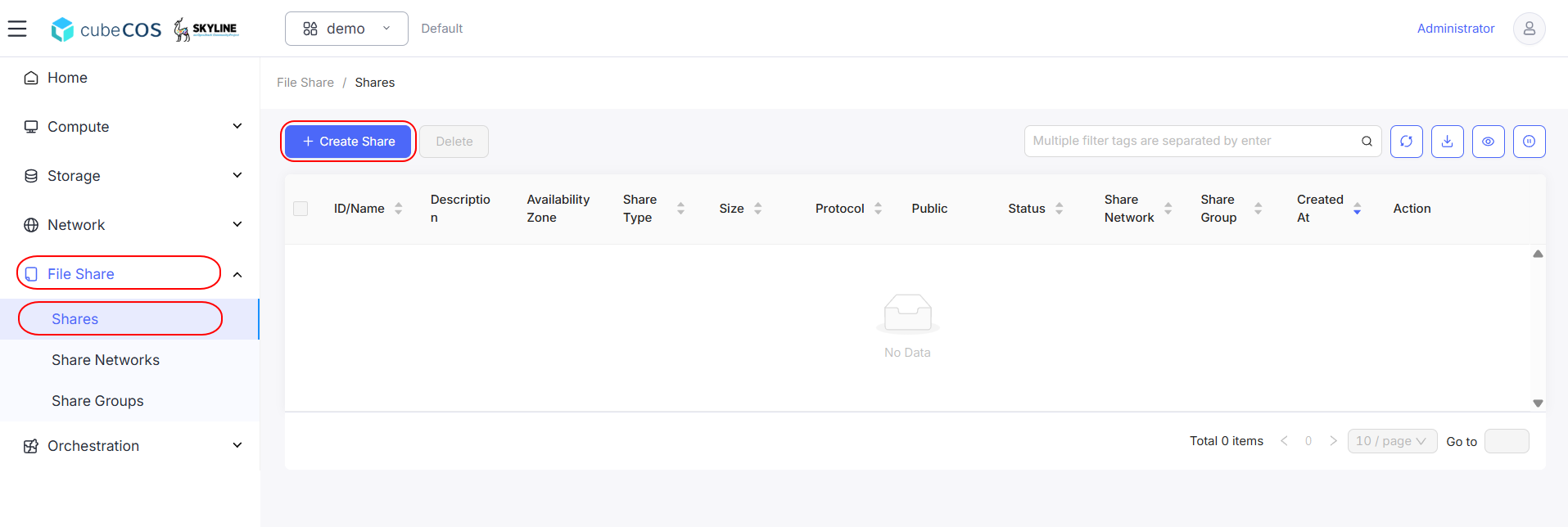

Navigate to
Project > File Share > Shares
>+ Create Share
. -

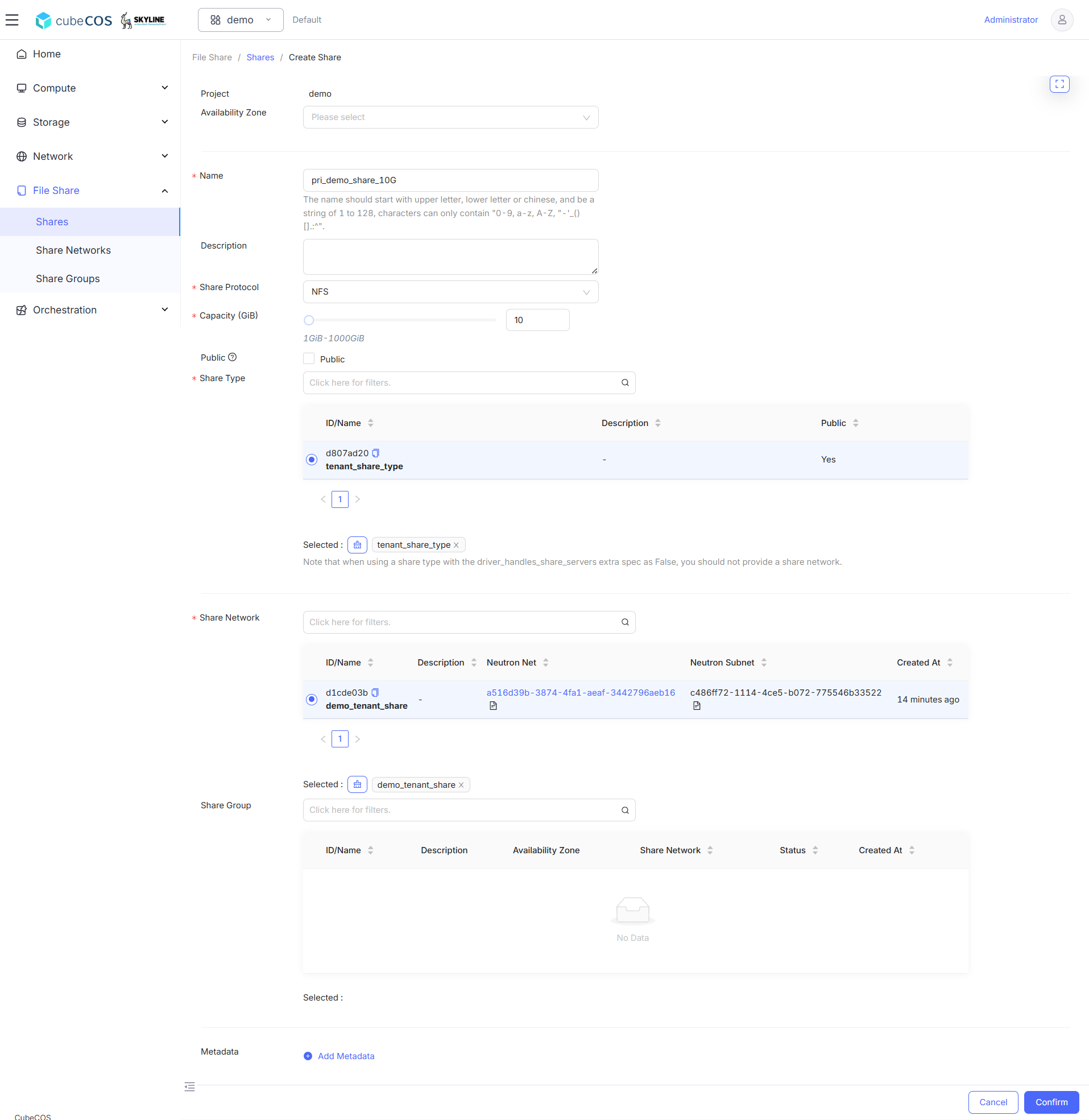

For this creation, fill in the following fields:
-
Available Zone: Specify Available Zone of Volume to create in. Choose Not Select unless clearly knowing which to assign. Available Zone is not required and set to none by default
-
*Name : Input desired name of the Share.
-
*Share Protocol: Supported Share Protocol types listed below
- NFS
- CIFS
-
*Capacity (GiB): Set capacity of the share volume (GiB, minimum 1).
-
*Share Type: Choose tenant_share_type.
-
*Share Network: Choose the Share Network created above.
After filling all fields above, click
Confirm
to apply Share creation.Demonstration below will use NFS as Share Protocol
-
-

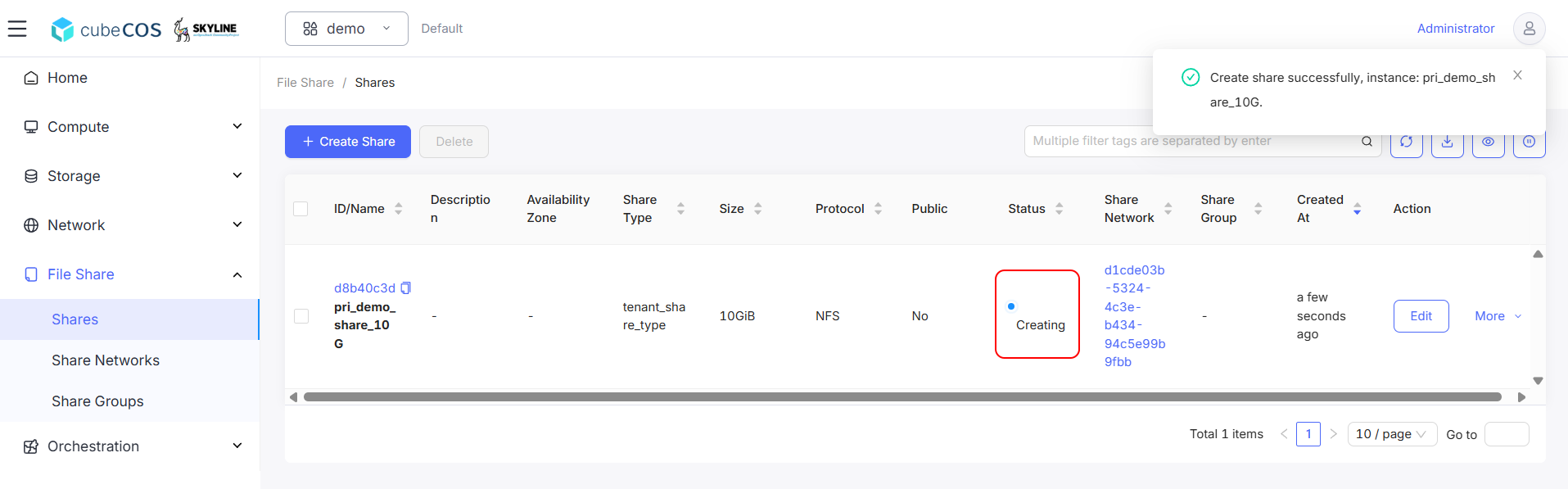

During share creation, share status will display
Creating

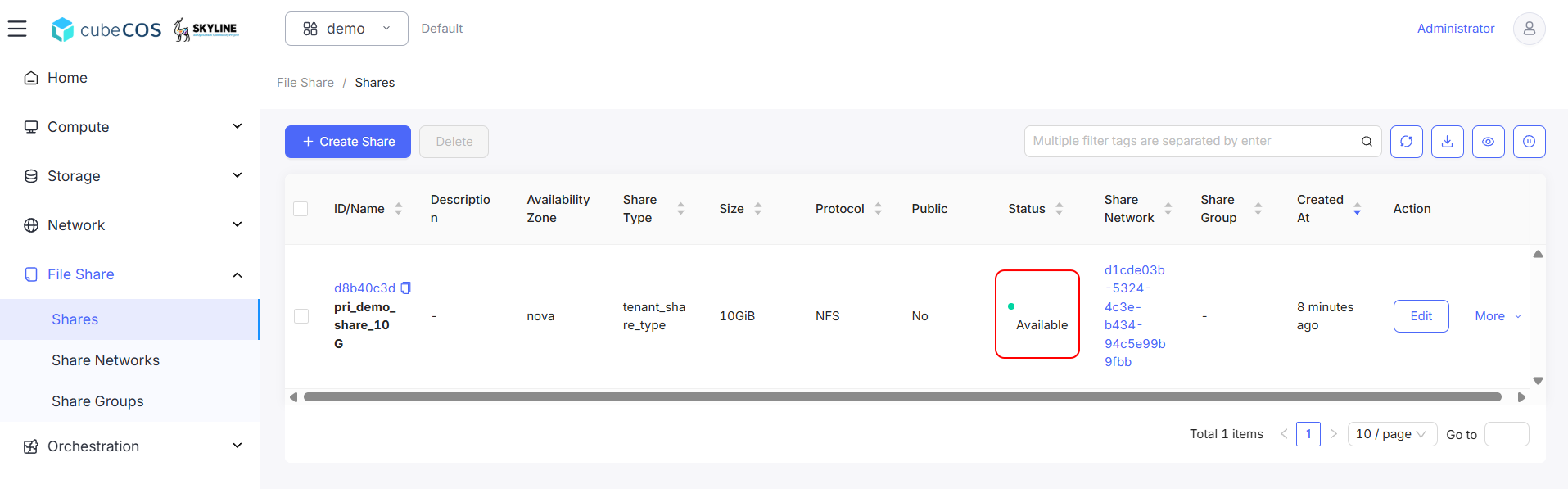

. The share status will change toAvailble
once creation is completed.
Create Rules​
-

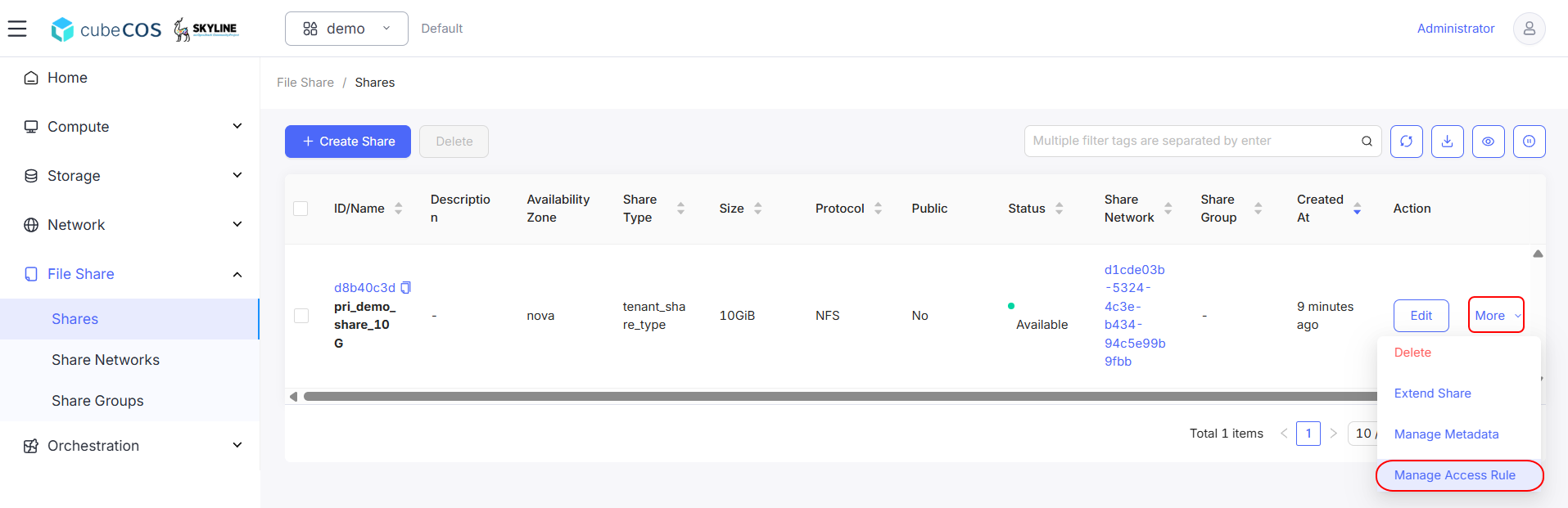

Choose the share created above, than hover to
More
, than clickManage Access Rule
from the drop down menu. -

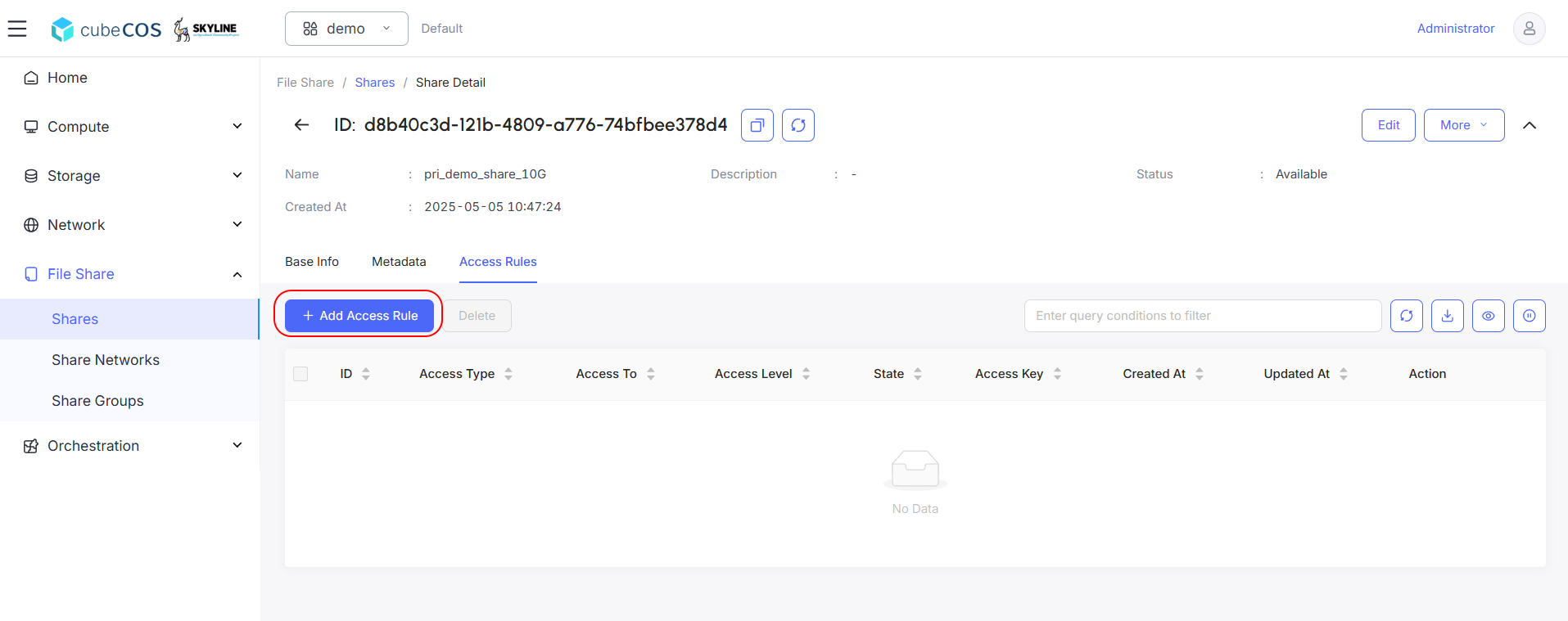

Click
Add Access Rule
. -
For this creation, fill in the following fields:
-
*Access Type : Supported Share Protocol types listed below
- IP : Authenticates through IP adress.
- Cert : Authenticates instances through TLS certificate.
- User : Authenticates by a specified user or group name.
- Cephx : Authenticates through Ceph system.
-
*Access Level : Select either
Read and write
orRead only
. -
*Access To: Attribute must fill in according to Access Type chose above:
- IP : A valid format is XX.XX.XX.XX or XX.XX.XX.XX/XX. For example 0.0.0.0/0.
- Cert : A valid value is any string up to 64 characters long in the common name (CN) of the certificate.
- User : An alphanumeric string that can contain some special characters and is from 4 to 32 characters long.
- Cephx : Specify the Ceph auth ID that needs to be authenticated and authorized for share access by the Ceph back end. A valid value must be non-empty, consist of ASCII printable characters, and not contain periods.

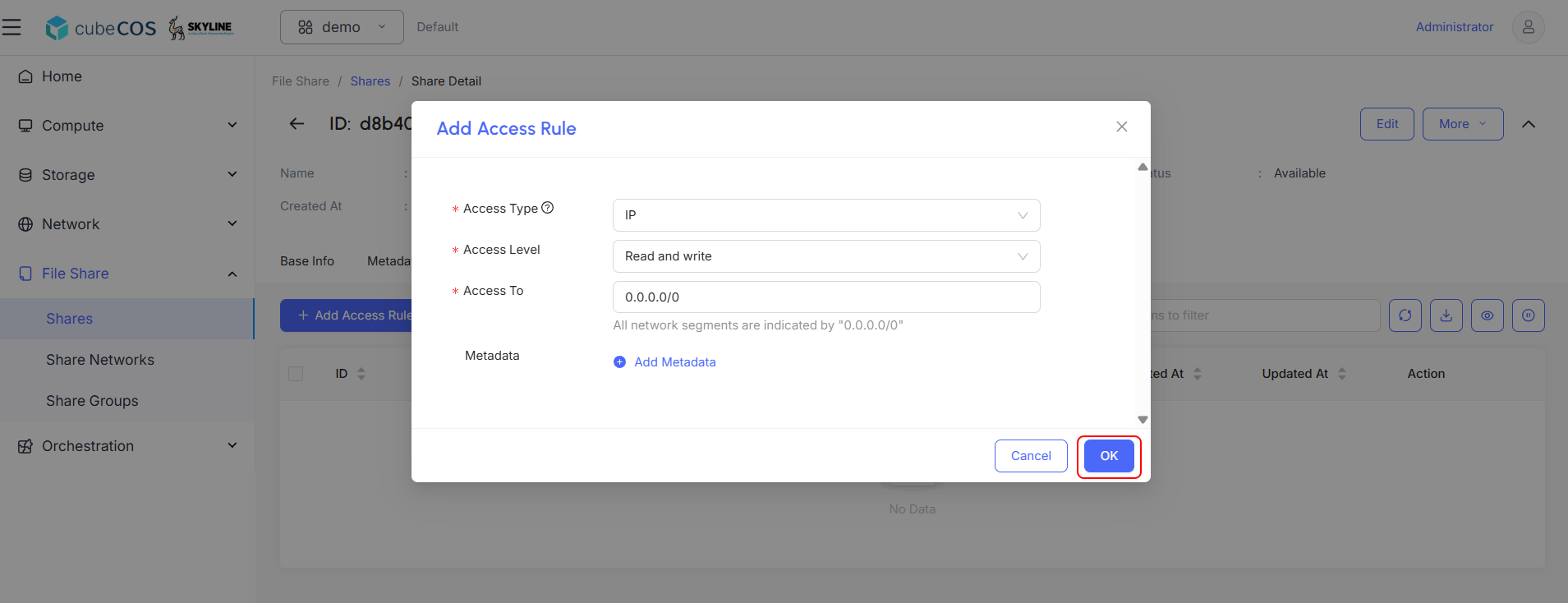

After filling all fields above, click
Confirm
to apply user creation.Demonstration below will use IP as Access Type
-
-

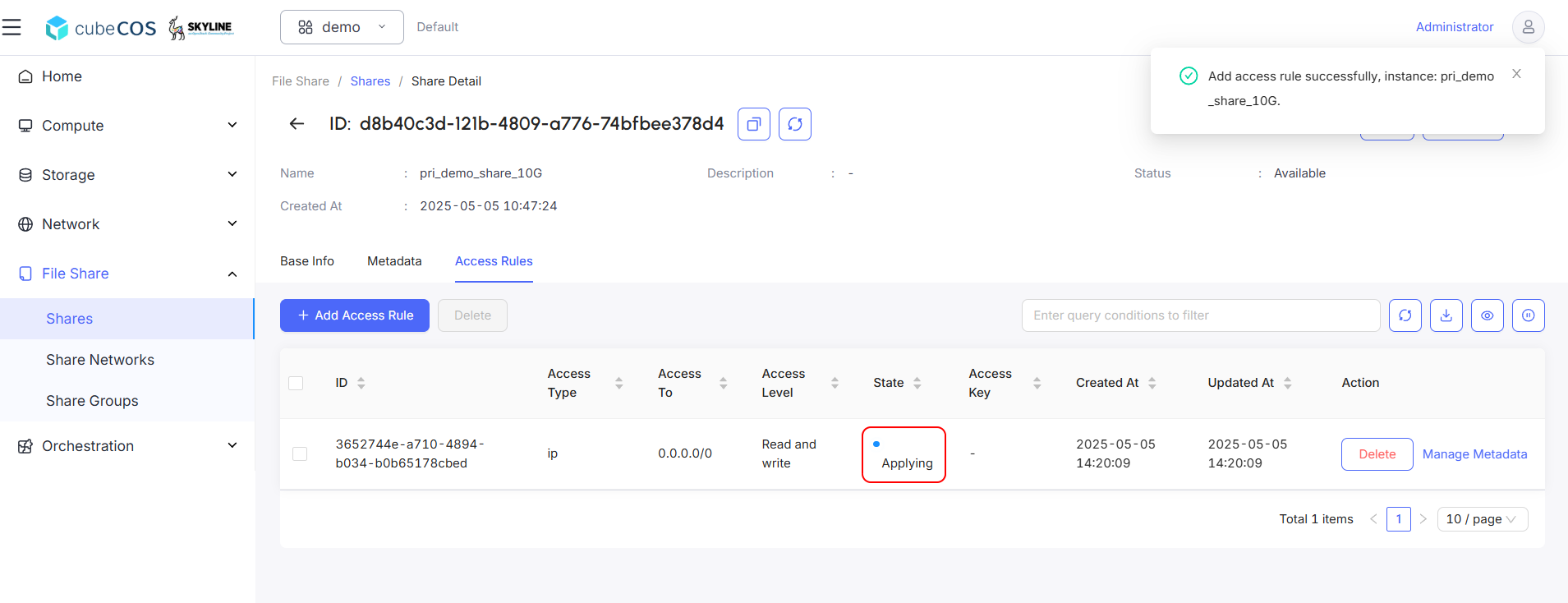

During rule apply, share status will display
Applying

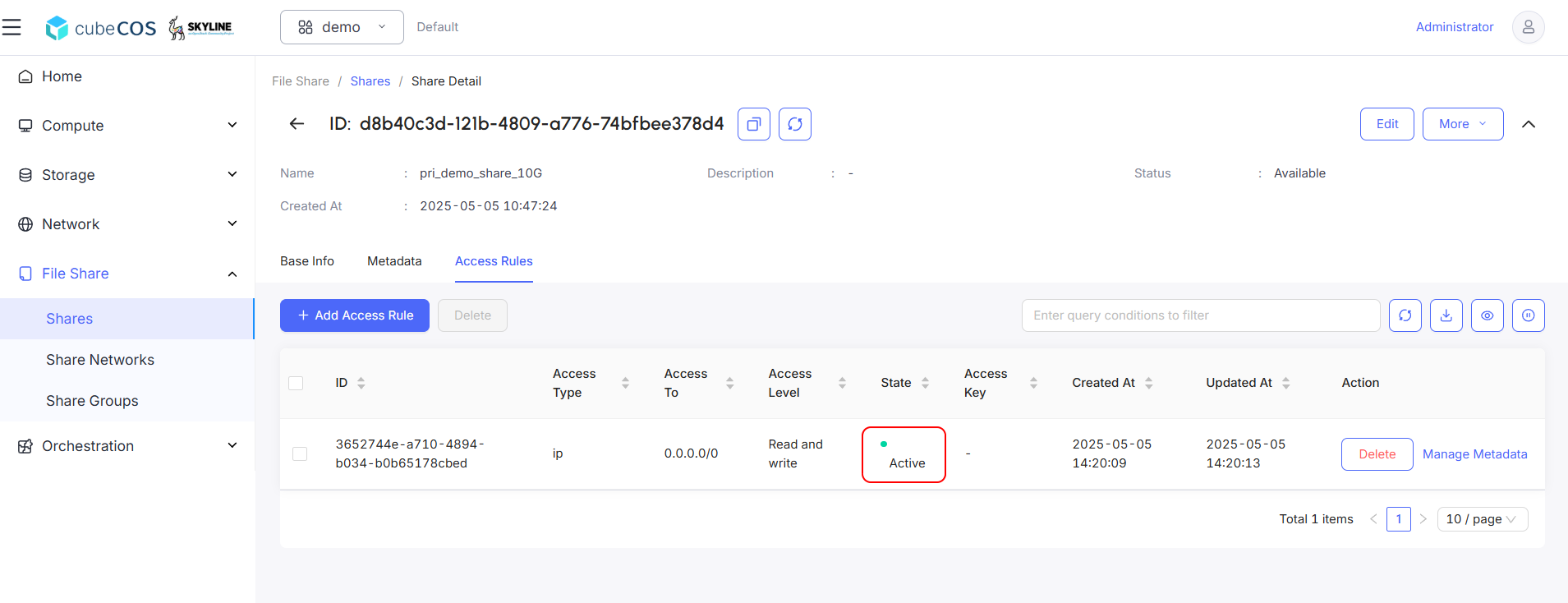

. The share status will change toActive
once apply is completed.
Get the shared link​
-

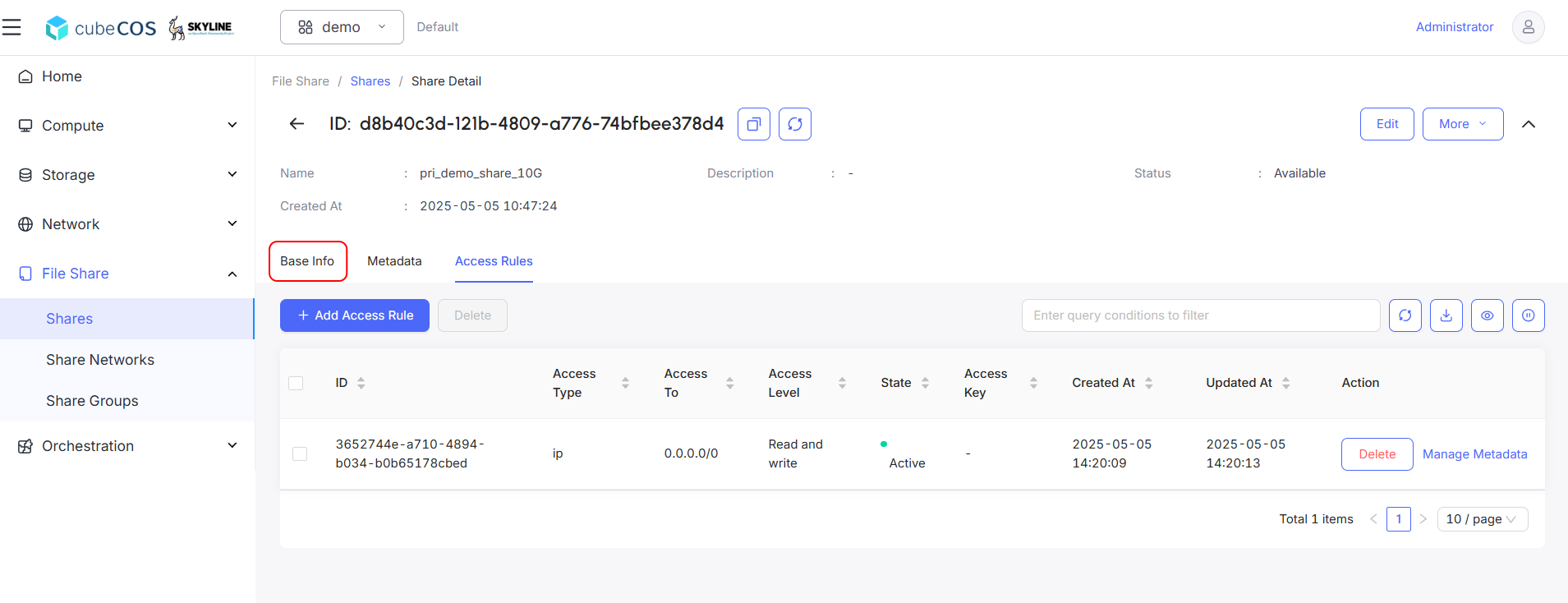

Click
Base Info
after rules areActive
. -

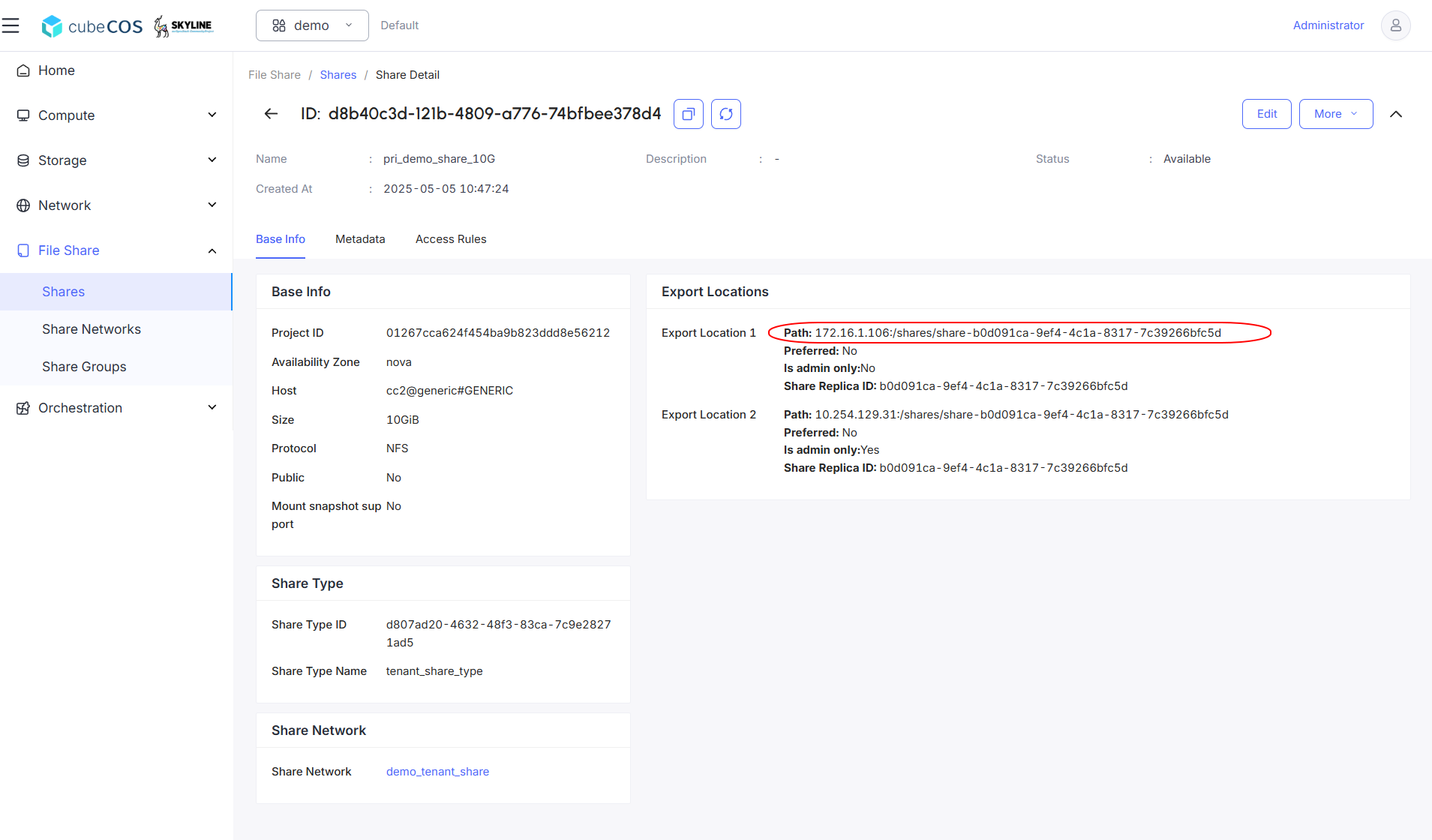

Copy
Path
fromExport Locations
attribute. This is the shared link recognized by instances.
Mounting Share Space to VM​
- Connect to the instances that need access to the file share and create a folder for mounting.
ubuntu@demo-ubuntu:~$ mkdir nfs-share
ubuntu@demo-ubuntu:~$ ls
nfs-share
- Mount share server to the folder created.
ubuntu@demo-ubuntu:~$ sudo mount -t nfs 172.16.1.106:/shares/share-b0d091ca-9ef4-4c1a-8317-7c39266bfc5d nfs-share/
- Verify mounting by
df -h
ubuntu@demo-ubuntu:~$ df -h
Filesystem Size Used Avail Use% Mounted on
tmpfs 392M 1.1M 391M 1% /run
/dev/vda1 96G 1.9G 94G 2% /
tmpfs 2.0G 0 2.0G 0% /dev/shm
tmpfs 5.0M 0 5.0M 0% /run/lock
/dev/vda16 881M 61M 758M 8% /boot
/dev/vda15 105M 6.1M 99M 6% /boot/efi
/dev/vdb 20G 24K 19G 1% /mnt/disk20g
tmpfs 392M 12K 392M 1% /run/user/1000
172.16.1.106:/shares/share-b0d091ca-9ef4-4c1a-8317-7c39266bfc5d 9.8G 128K 9.3G 1% /home/ubuntu/nfs-share
- Verify accessibility by creating a file.
ubuntu@demo-ubuntu:~$ ls nfs-share/
lost+found
ubuntu@demo-ubuntu:~$ touch nfs-share/bigstack.co.txt
ubuntu@demo-ubuntu:~$ ls nfs-share/
bigstack.co.txt lost+found
