How to create an A record using DNSaaS

Setting the DNS of Network

Goto Admin > Network > Networks, click on the Network Name from the list of your Networks then hit the action button EDIT SUBNET, go to Subnet Details and type in your DNS Name Servers, it should be your controller IP address or VIP and SAVE

Create DNS Zone

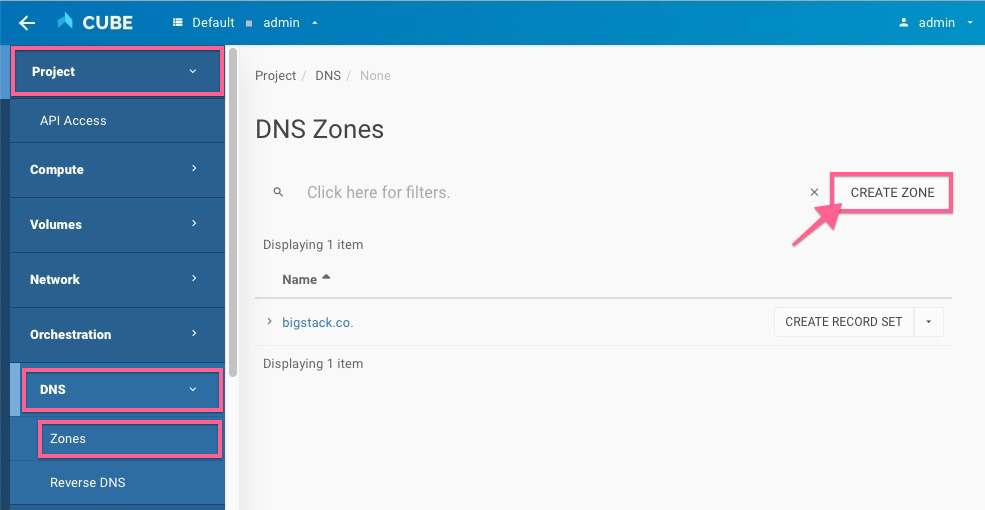

Goto Project > DNS > Zones, click on the CREATE ZONE

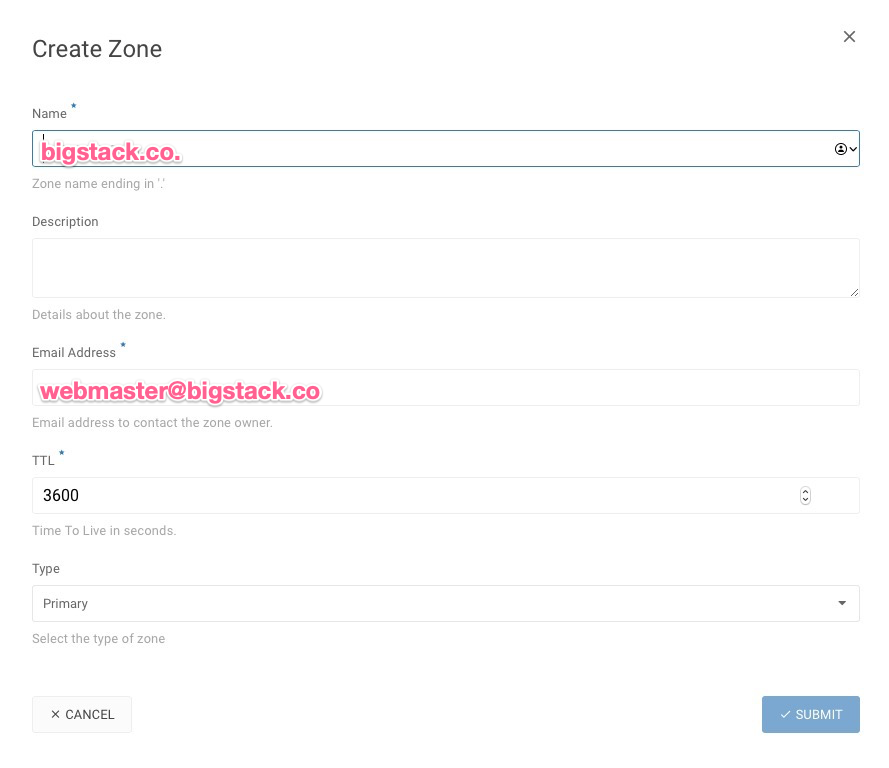

• create zone with a preferred/registered domain name

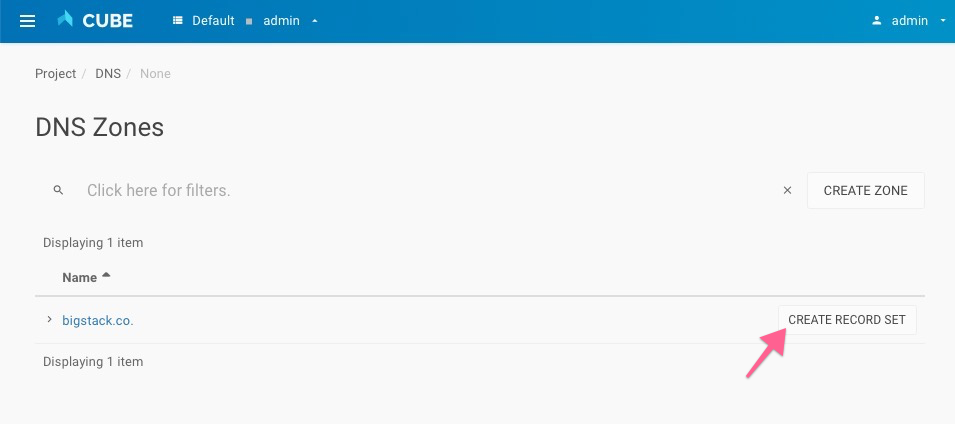

Create Record Set

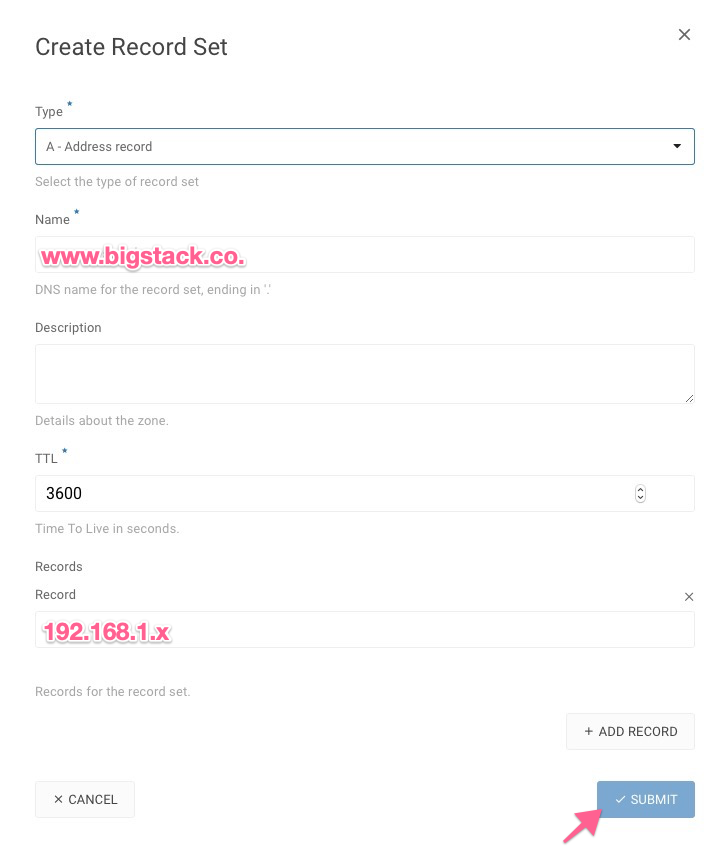

Create an A Record with your Virtual Machine IP address

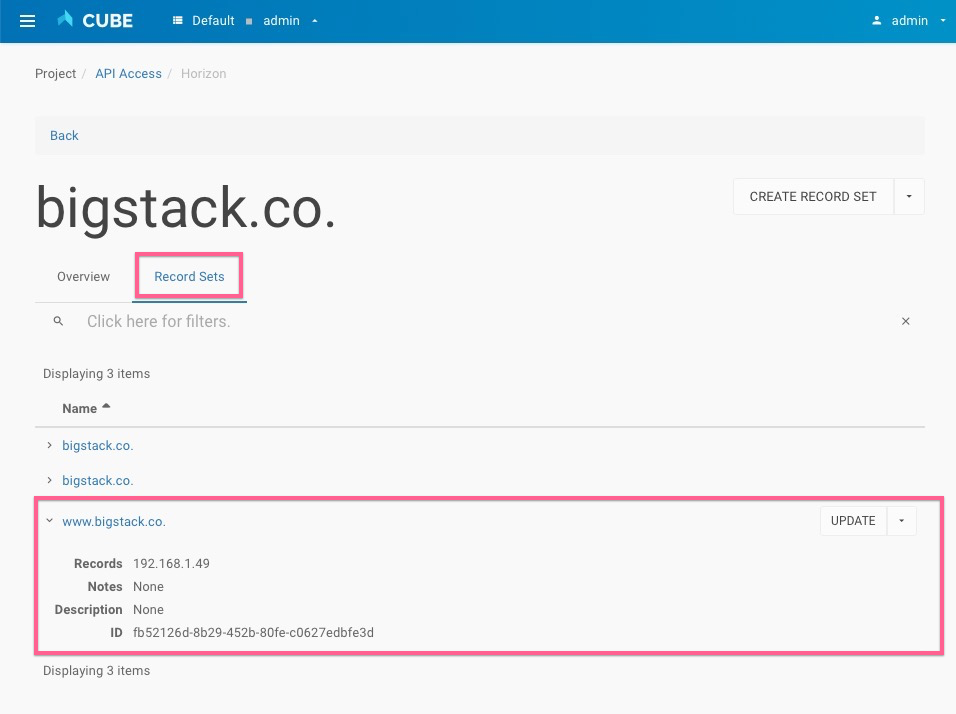

Check the Record Set

Test the DNS

• connect your virtual machine and ping www.bigstack.co

• Alternatively, you can change your compute DNS and try it out

  $ ssh [email protected]
  Warning: Permanently added '192.168.1.49' (ECDSA) to the list of known hosts.
  $ ping www.bigstack.co
  PING www.bigstack.co (192.168.1.49): 56 data bytes
  64 bytes from 192.168.1.49: seq=0 ttl=64 time=0.019 ms
  64 bytes from 192.168.1.49: seq=1 ttl=64 time=0.062 ms
  64 bytes from 192.168.1.49: seq=2 ttl=64 time=0.040 ms
  64 bytes from 192.168.1.49: seq=3 ttl=64 time=0.067 ms
  64 bytes from 192.168.1.49: seq=4 ttl=64 time=0.035 ms
