Create autoscale cluster

Create profile

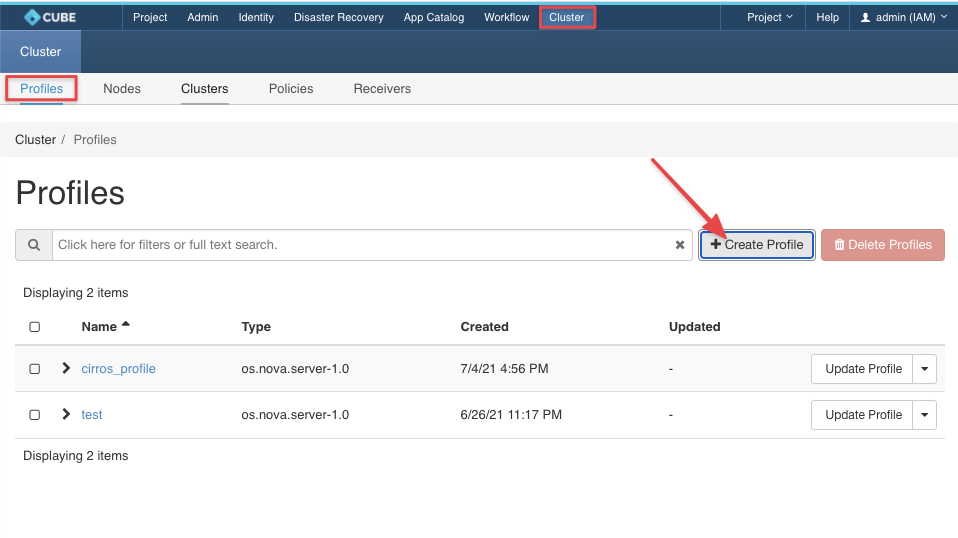

Please navigate to Cluster > Cluster > Profiles > + Create Profile

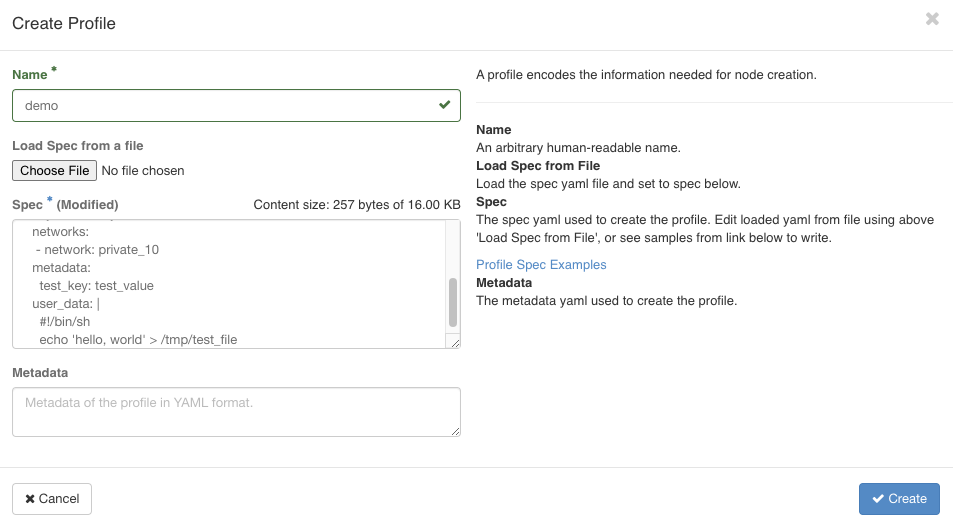

Spac:

type: os.nova.server
version: 1.0
properties:
  name: cirros_server
  flavor: m1.small
  image: "Cirros"
  key_name: "roy"
  networks:
   - network: private_10
  metadata:
    test_key: test_value
  user_data: |
    #!/bin/sh
    echo 'hello, world' > /tmp/test_file

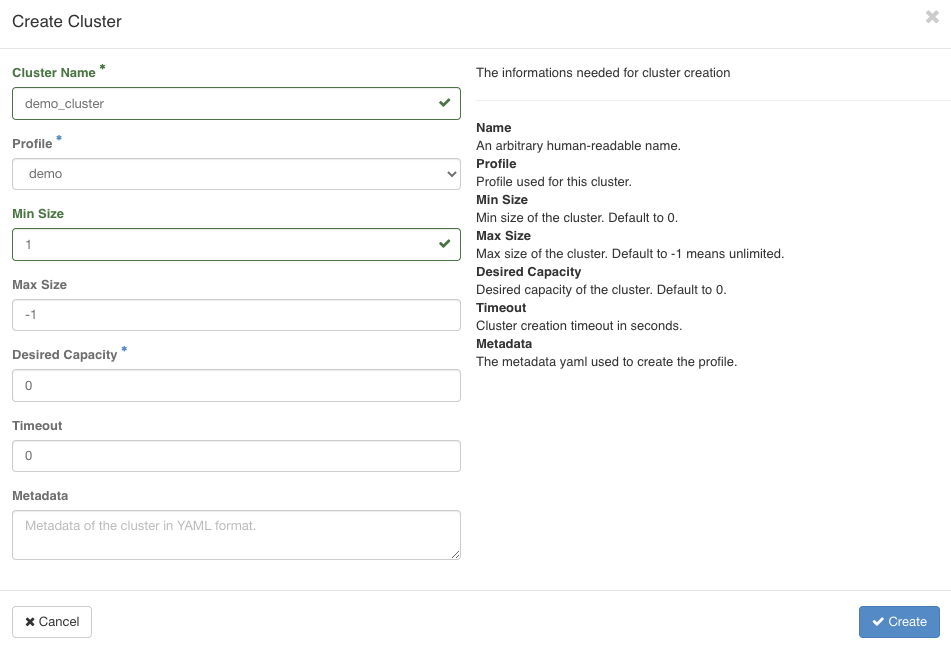

Create Cluster

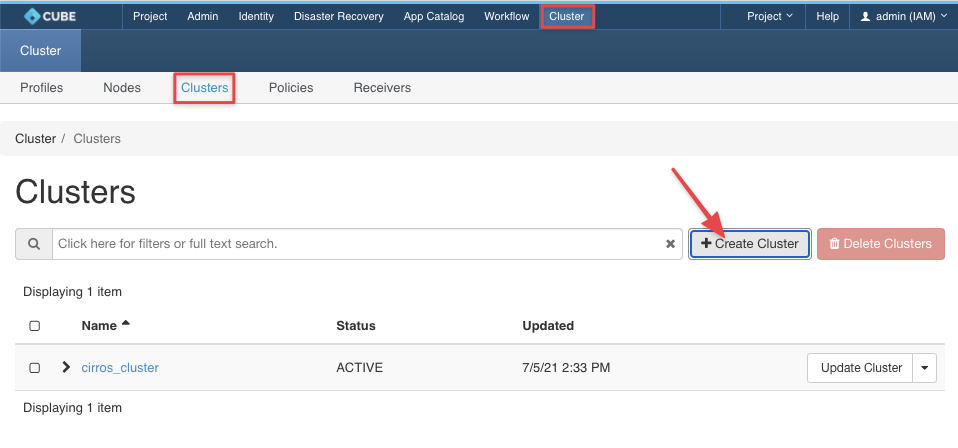

Please navigate to Cluster > Cluster > Cluster > + Create Cluster

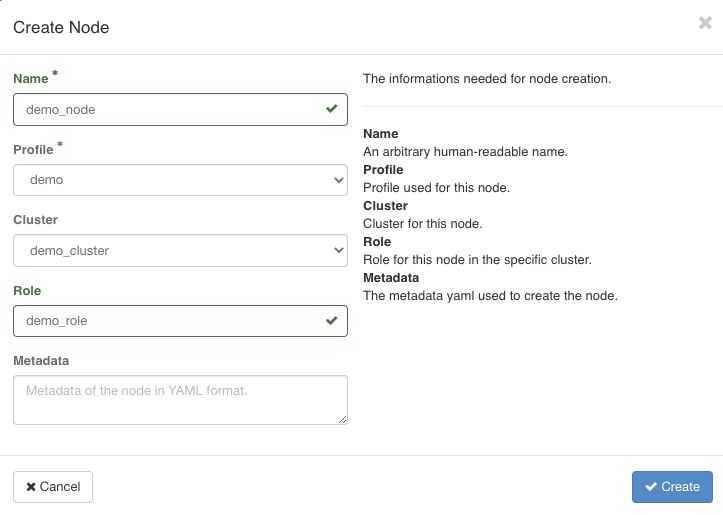

Create Node

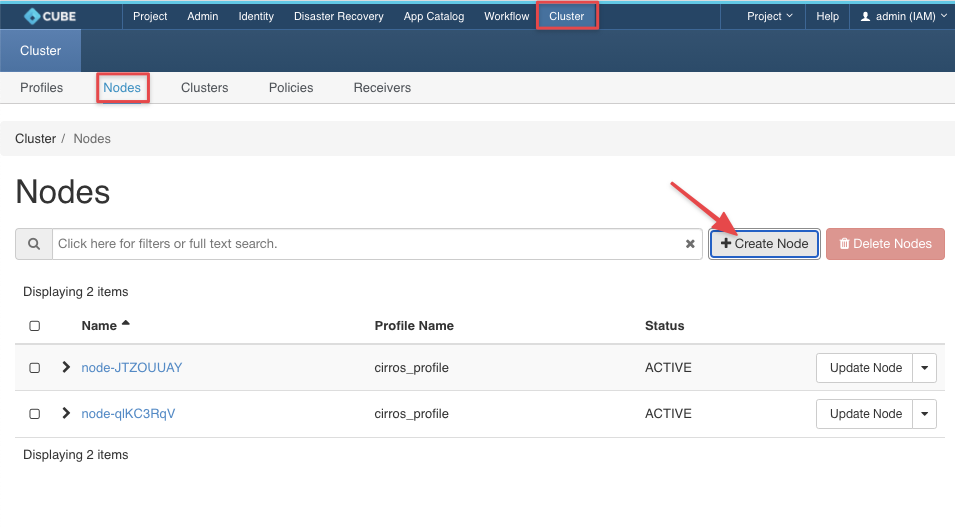

Please navigate to Cluster > Cluster > Nodes > + Create Nodes

Create Policy

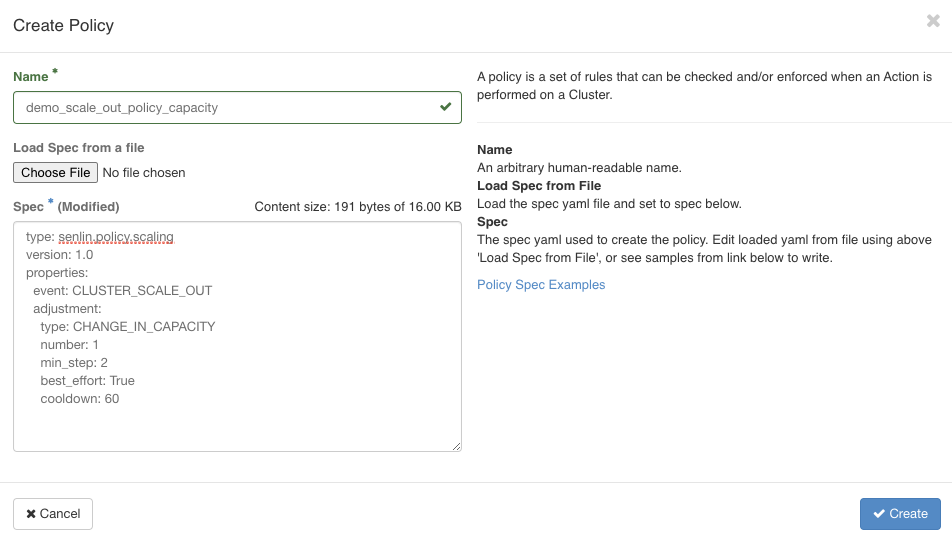

Please navigate to Cluster > Cluster > Policy > + Create Policy

Spec:

type: senlin.policy.scaling
version: 1.0
properties:
  event: CLUSTER_SCALE_OUT
  adjustment:
    type: CHANGE_IN_CAPACITY
    number: 1
    min_step: 2
    best_effort: True

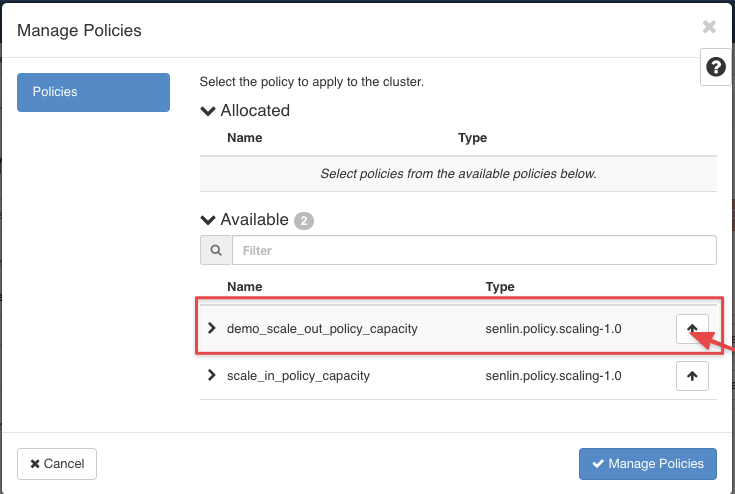

Attach policy to cluster

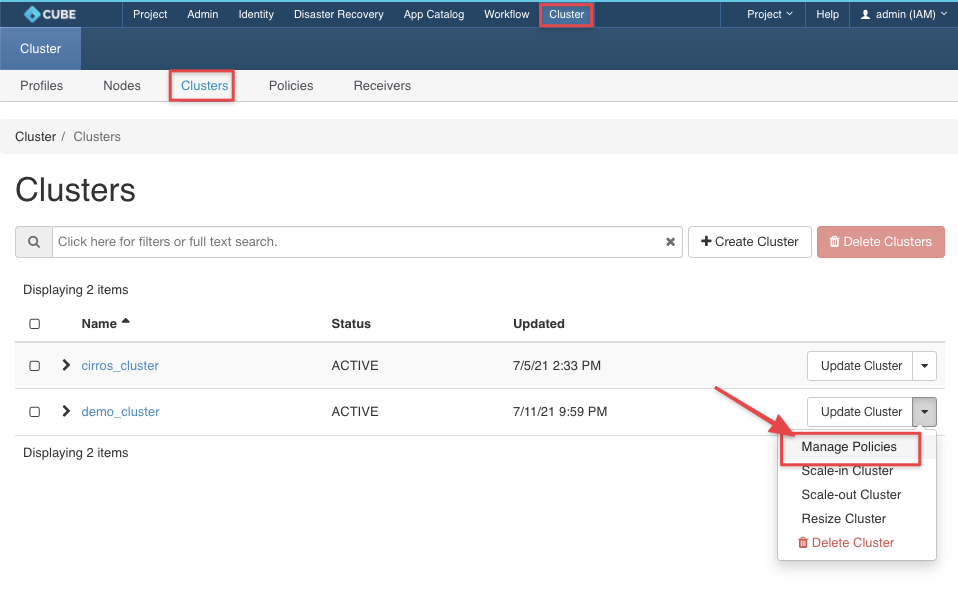

Please navigate to Cluster > Cluster > Cluster > Choose Manage Policies from your cluster dropdown menu

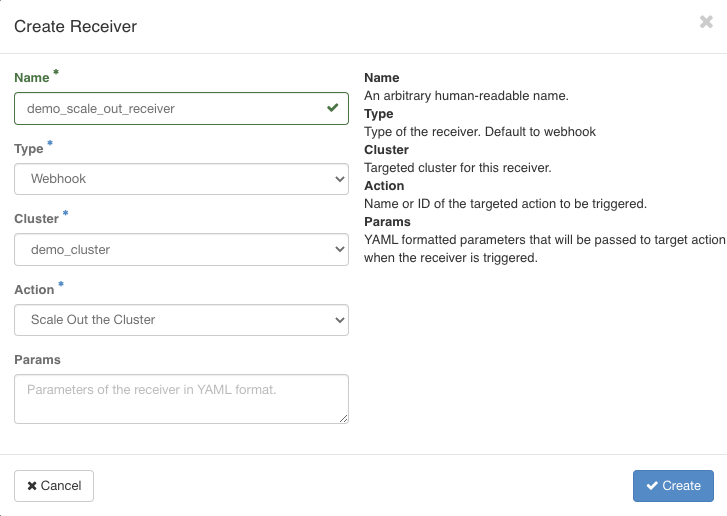

Create Receiver

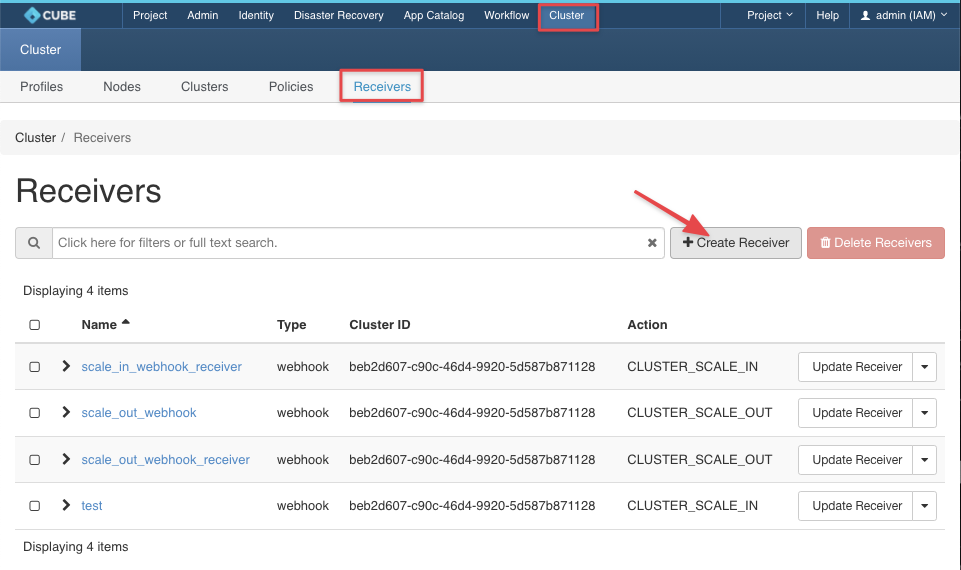

Please navigate to Cluster > Cluster > Receivers > + Create Receiver

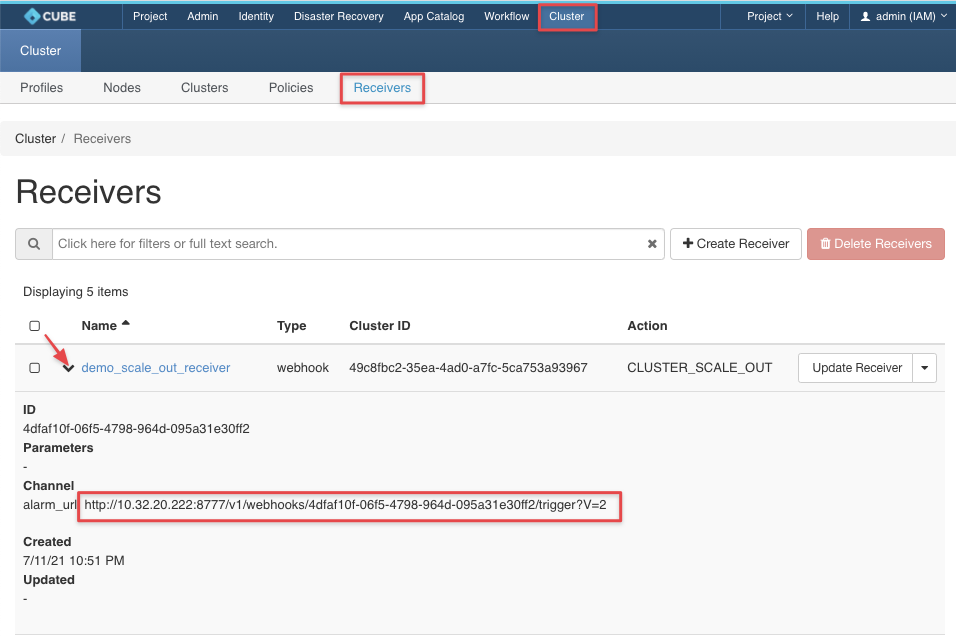

Check for receiver endpoint

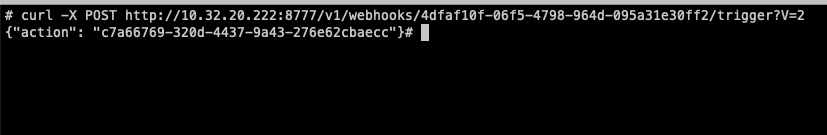

Send a POST request over terminal

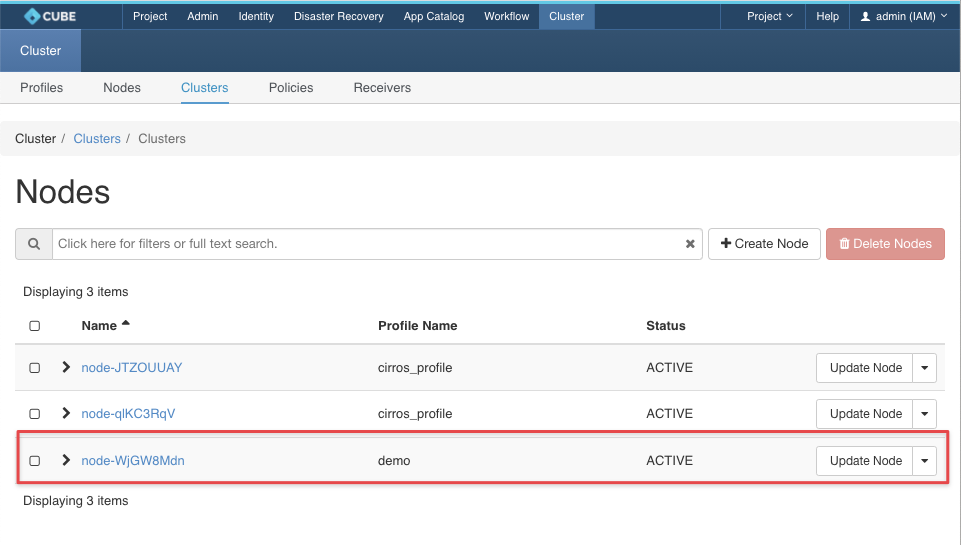

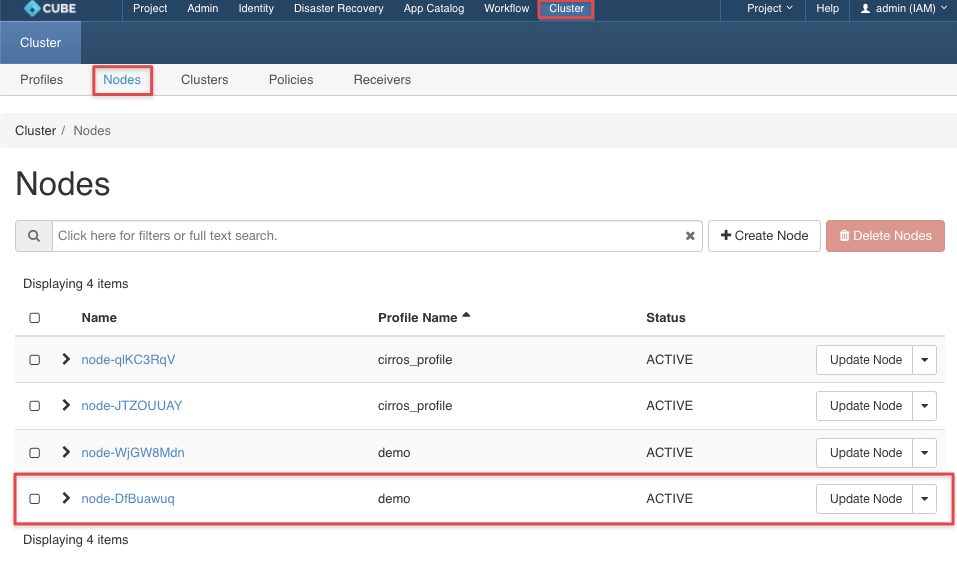

Result

Please navigate to Cluster > Cluster > Nodes > Check for the scale out results
