建立存取權限/密鑰以存取物件儲存所 API
資訊
USB儲存裝置預設為被封鎖狀態。 若需存取 USB 裝置，請以管理員身分登入後，透過 CLI > tuning > configure 指令將調校選項 cubesys.probeusb 設定為 true。
透過 SSH 存取 CubeCOS 叢集 VIP
$ ssh admin@IPADDRESS
建立S3儲存桶
cc1> s3 bucket create
Select a user:
1: admin
2: skyline
3: demo_user
4: demo_user2
5: app-framework
6: bigstack
7: bigstack-k8s
8: CMP-demo
Enter index: 1
Input bucket path: adminbucket
Bucket 's3://adminbucket/' created
建立存取權限與密鑰
cc1> s3 ec2_key_create
Select a user:
1: admin
2: skyline
3: demo_user
4: demo_user2
5: app-framework
6: bigstack
7: bigstack-k8s
8: CMP-demo
Enter index: 1
+------------+-----------------------------------------------------------------------------------------------------------------------------------+
| Field | Value |
+------------+-----------------------------------------------------------------------------------------------------------------------------------+
| access | a4b6e082050e4bb0a8e3be5b2d4c5e8f |
| links | {'self': 'http://172.16.0.10:5000/v3/users/d3e3012cea2e4fbeada6742b4c4f8bb1/credentials/OS-EC2/a4b6e082050e4bb0a8e3be5b2d4c5e8f'} |
| project_id | c0978a86e3b242da9ba549acf5178266 |
| secret | d0f72c4c6f2a4082b3cb5a19b52d95e5 |
| trust_id | None |
| user_id | d3e3012cea2e4fbeada6742b4c4f8bb1 |
+------------+-----------------------------------------------------------------------------------------------------------------------------------+
cc1> s3 ec2_key_list
Select a user:
1: admin
2: skyline
3: demo_user
4: demo_user2
5: app-framework
6: bigstack
7: bigstack-k8s
8: CMP-demo
Enter index: 1
+----------------------------------+----------------------------------+
| Access | Secret |
+----------------------------------+----------------------------------+
| a4b6e082050e4bb0a8e3be5b2d4c5e8f | d0f72c4c6f2a4082b3cb5a19b52d95e5 |
+----------------------------------+----------------------------------+
測試結果
s3cmd
$ s3cmd --no-ssl --host=http://172.16.0.10:8888 --host-bucket=http://172.16.0.10 --access_key=a4b6e082050e4bb0a8e3be5b2d4c5e8f --secret_key=d0f72c4c6f2a4082b3cb5a19b52d95e5 la
2025-05-03 03:19 140 s3://adminbucket/display.txt
命令列介面
cc1> s3 object put
Select a user:
1: admin
2: skyline
3: demo_user
4: demo_user2
5: app-framework
6: bigstack
7: bigstack-k8s
8: CMP-demo
Enter index: 1
Select a media:
1: usb
2: local
Enter index: 1
Insert a USB drive into the USB port on the appliance.
Enter 'YES' to confirm: YES
1: display.txt
Enter index: 1
Input object path: adminbucket
upload: '/mnt/usb/display.txt' -> 's3://adminbucket/display.txt' [1 of 1]
140 of 140 100% in 0s 177.50 B/s done
Uploading object to adminbucket3 complete. It is safe to remove the USB drive.

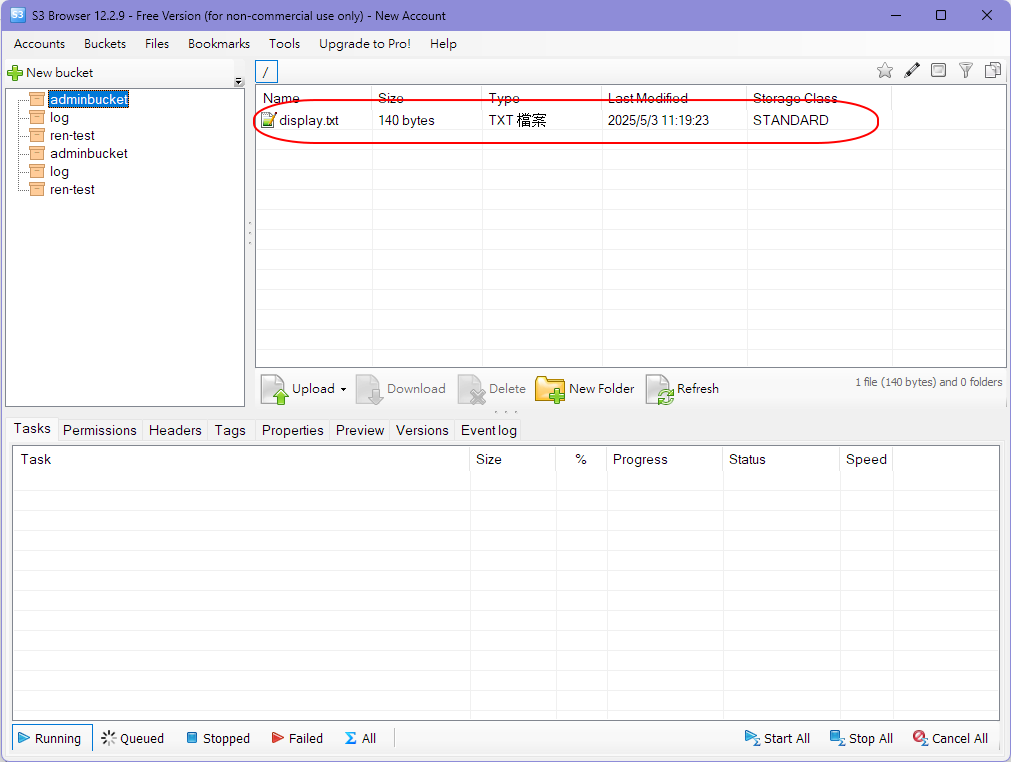

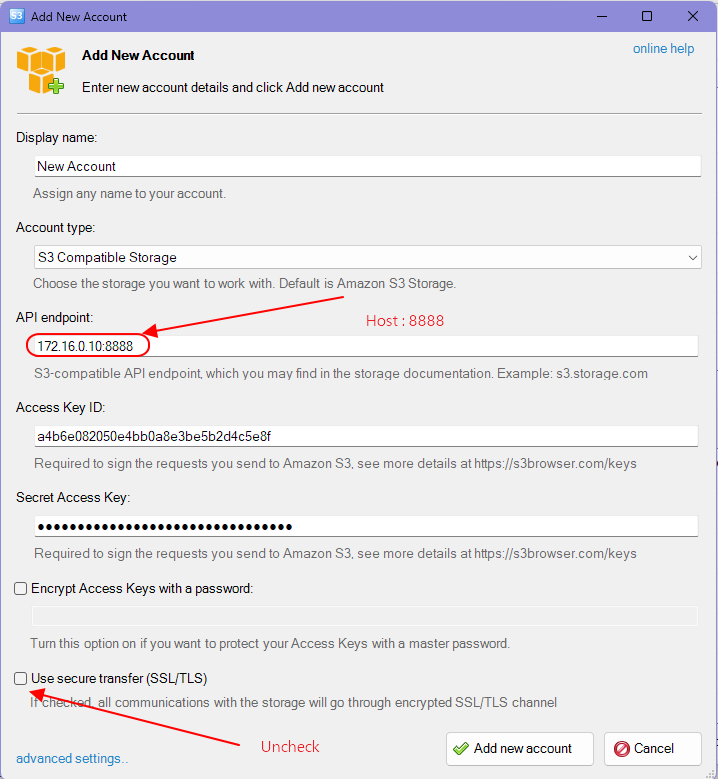

Microsoft Windows - S3 瀏覽器
